FAIRCHILD SEMICONDUCTOR 74LVT573MTC 芯片, 74LVT CMOS逻辑器件
The is an Octal Transparent Latch with 3-state outputs. The latch appears transparent to the data when LE is high. When LE is low, the data satisfying the input timing requirements is latched. Data appears on the bus when the OE\ is low. When OE\ is high, the bus output is in the high impedance state. The LVTH573 data inputs include bushold, eliminating the need for external pull-up resistors to hold unused inputs. These octal latches are designed for low-voltage 3.3V VCC applications, but with the capability to provide a TTL interface to a 5V environment. It is fabricated with an advanced BiCMOS technology to achieve high speed operation similar to 5V ABT while maintaining a low power dissipation.
电源电压DC 2.70V min
输出电流 64 mA
电路数 8
针脚数 20
位数 8
逻辑门个数 8
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 20

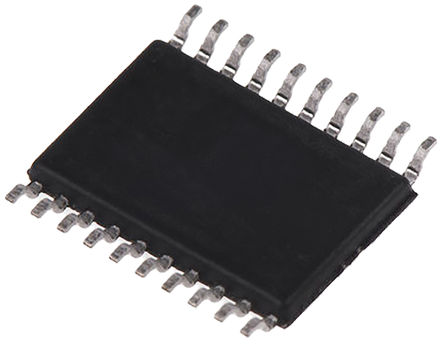

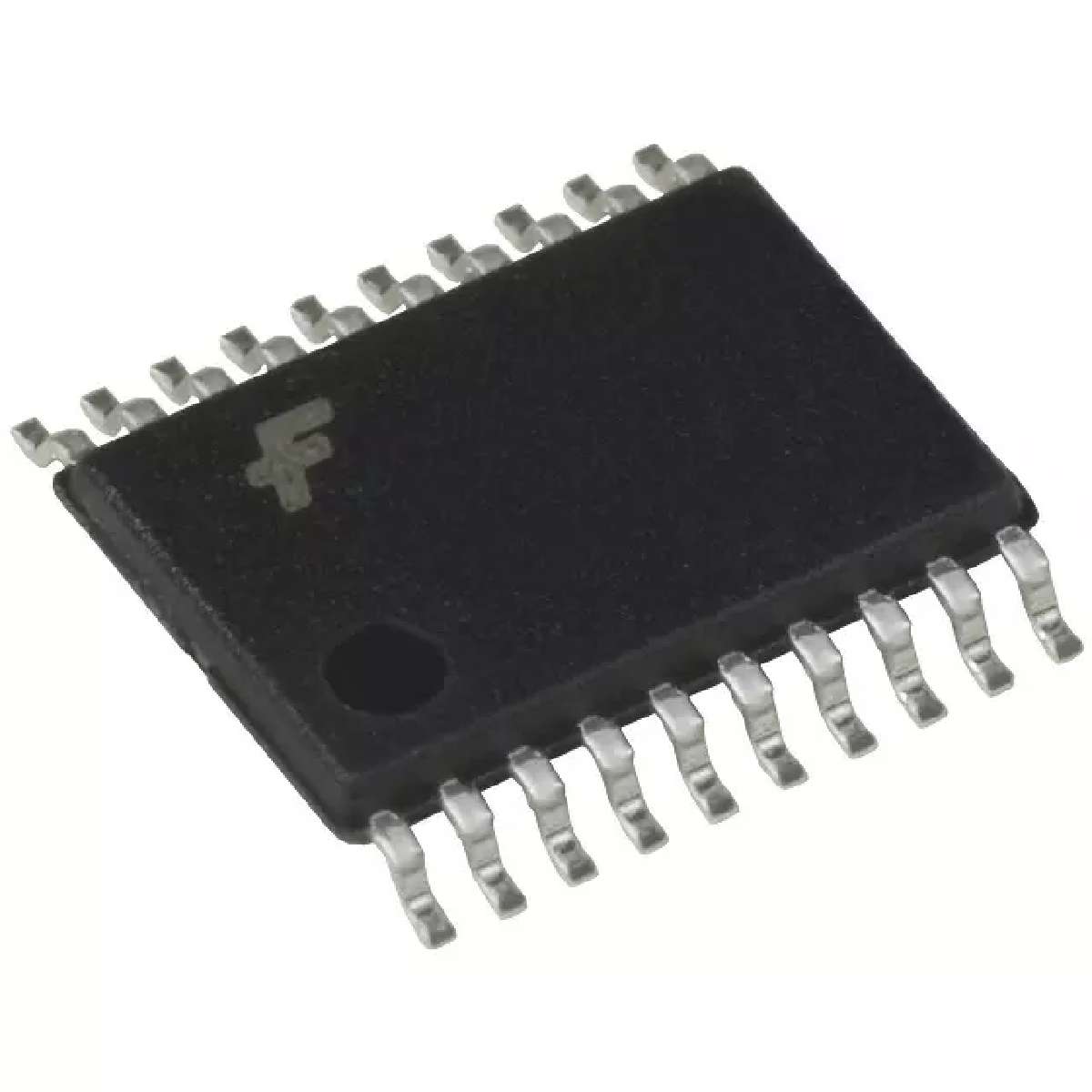

封装 TSSOP-20
长度 6.5 mm
宽度 4.4 mm
高度 0.9 mm
封装 TSSOP-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
