低电压八路D型触发器,容许5V输入和输出 Low Voltage Octal D-Type Flip-Flop with 5V Tolerant Inputs and Outputs
Thanks to Semiconductor and their flip flop device, you can ensure that your state information is saved and available for later use. With a 3-state output, this is power management at its best. It has a single-ended output signal. This flip flop has an operating temperature range of -40 °C to 85 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3 V. Its minimum operating supply voltage of 2 V, while its maximum is 3.6 V. It has 8 channels per chip.
电路数 1
通道数 8
时钟频率 150 MHz
位数 8
输入电容 7 pF
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 20

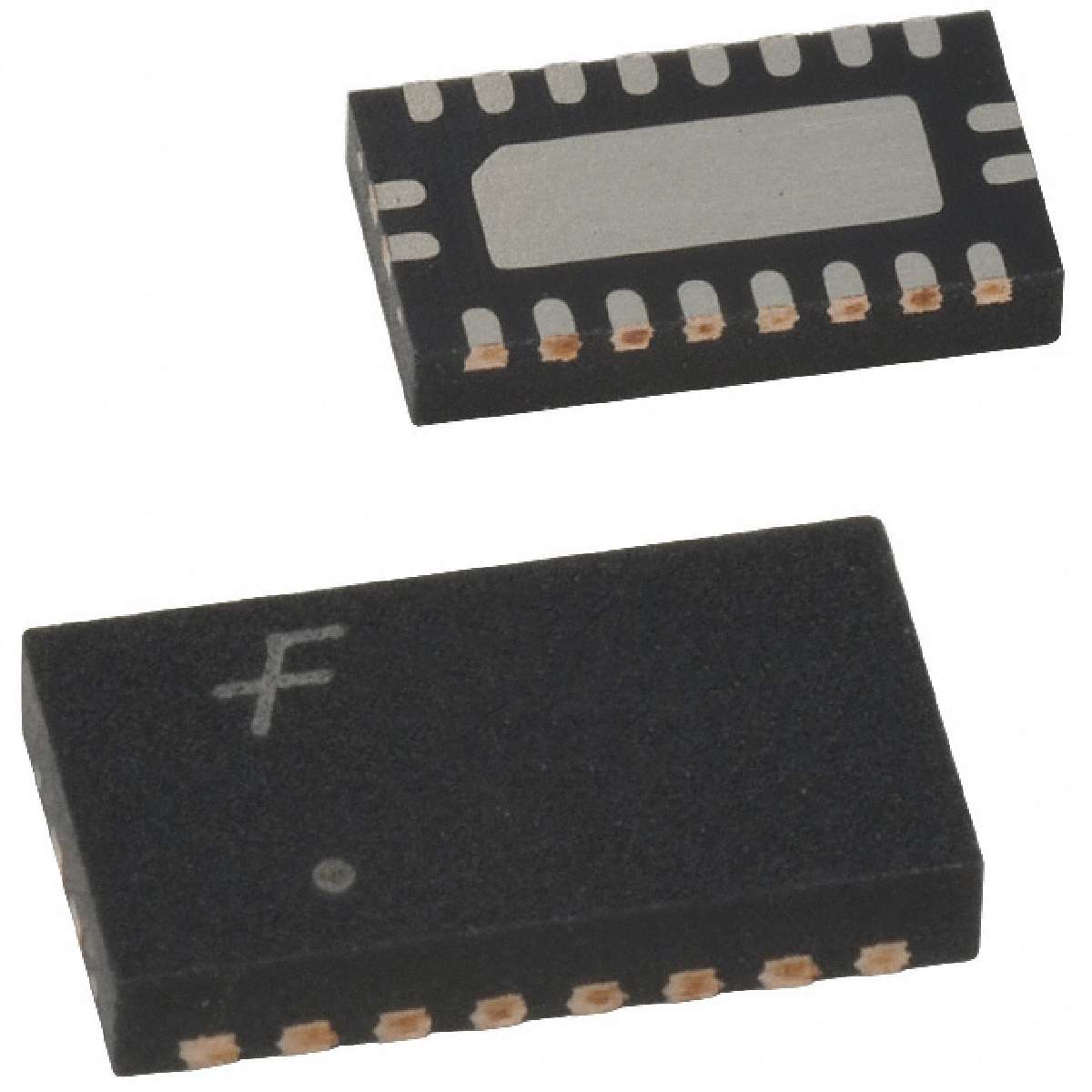

封装 DQFN-20
长度 4.5 mm
宽度 2.5 mm
高度 0.75 mm
封装 DQFN-20
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
