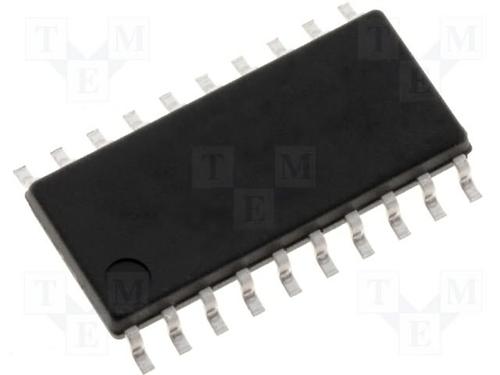

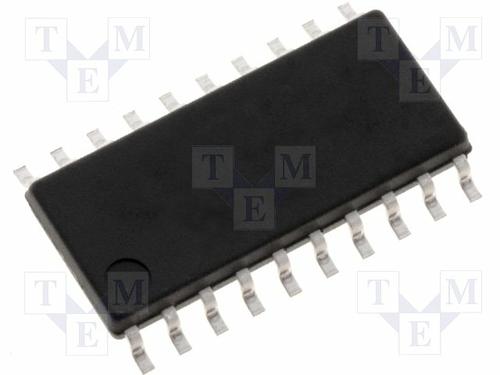

74ABT541D

74ABT 系列，NXP高级 BiCMOS 技术逻辑 工作电压 4.5 － 5.0 兼容性：输入 LVTTL/TTL、输出 TTL ### 74ABT 系列

The is an octal Bus Interface Buffer that is ideal for driving bus lines. The outputs are all capable of sinking 64mA and sourcing 32mA. The device features input and outputs to facilitate printed circuit board layout. The 74ABT541 high-performance BiCMOS device combines low static and dynamic power dissipation with high speed and high output drive. It provides ideal interface and increases fan-out of MOS microprocessors.

.

Efficient pinout to facilitate PC board layout

.

Live insertion/extraction permitted

.

Power-up 3-state

.

Latch-up protection exceeds 500mA per JESD78 class II level A

.

Functions similar to the 74ABT241
