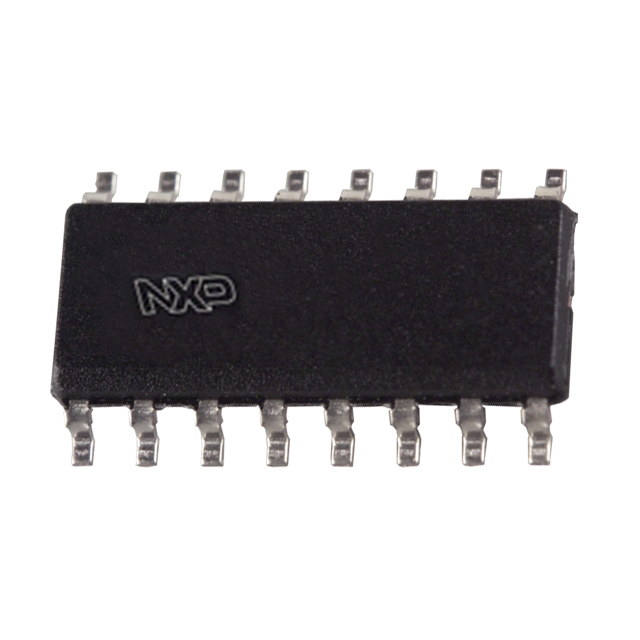

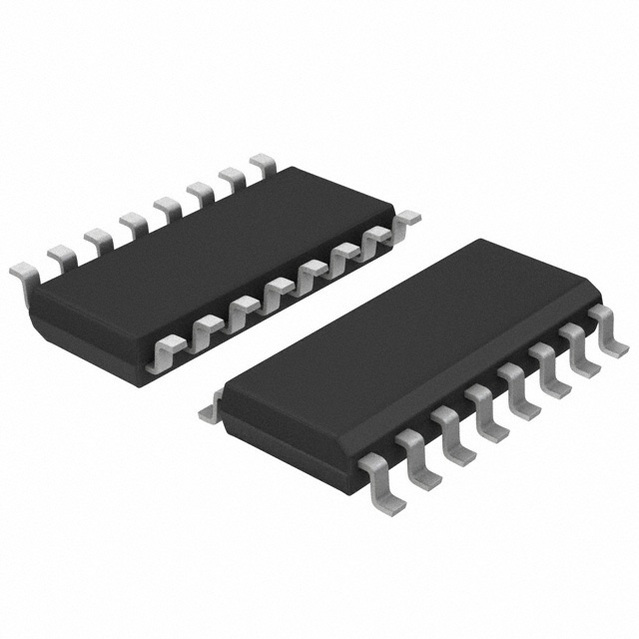

74HCT4040D,652

NXP  74HCT4040D,652  芯片, 纹波二进制计数器, 79MHZ, SOIC-16

The 74HCT4040D is a 12-stage Binary Ripple Counter with a clock input CP\\, an overriding asynchronous master reset input MR and twelve parallel outputs Q0 to Q11. The counter advances on the high-to-low transition of CP\\. A high on MR clears all counter stages and forces all outputs low, independent of the state of CP\\. Each counter stage is a static toggle flip-flop. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.

.

TTL Input levels

.

Complies with JEDEC standard No. 7A
