71M6533-IGTR/F

MAXIM INTEGRATED PRODUCTS  71M6533-IGTR/F  芯片, 特殊功能

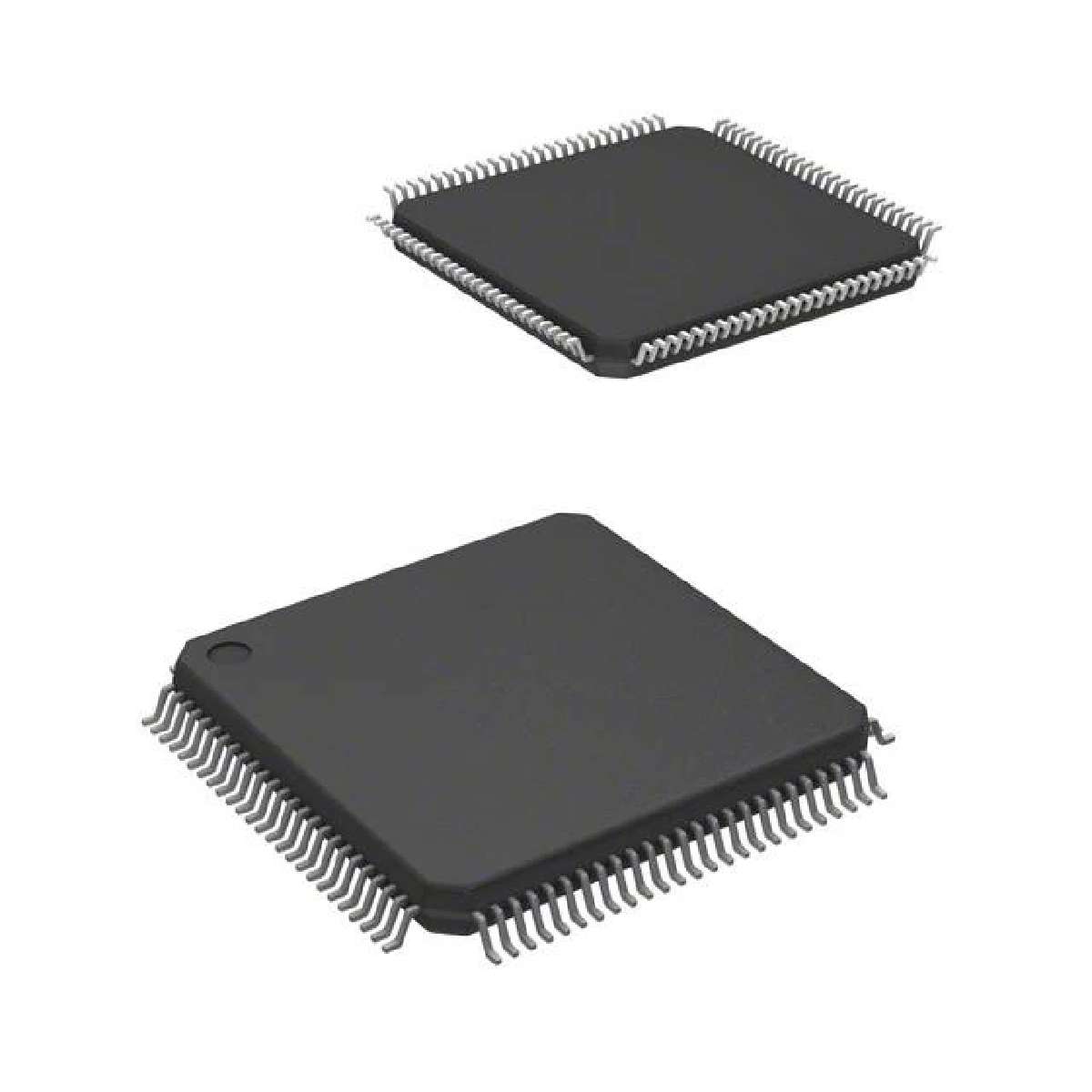

The is an energy meter IC in 100 pin LQFP package. This is an 3rd generation polyphase metering systems-on-chip SoC with a 10MHz 8051-compatible MPU core, low power RTC, flash and LCD driver. The Single Converter Technology with a 22bit delta-sigma ADC, seven analogue inputs, digital temperature compensation, precision voltage reference and a 32bit computation engine CE supports a wide range of metering applications with very few external components. This IC adds several new features to the Teridian flagship 71M6513 polyphase meters, including an SPI interface, advanced power management with < 1µA sleep current, 4KB shared RAM and 128KB flash. It can be programmed in the field with new code and/or data during meter operation. Higher processing and sampling rates and larger memory offer a powerful metering platform for commercial and industrial meters with up to class 0.2 accuracy.

.

Supply voltage range is 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Wh accuracy < 0.1% over 2000:1 current range, exceeds IEC62053/ANSI C12.20 standards

.

7 sensor inputs with neutral current measurement, 4-quadrant metering

.

Low-jitter Wh & VARh plus 2 additional pulse test outputs 4 total, 10KHz maximum with pulse count

.

Line frequency count for RTC, digital temperature compensation & independent 32bit CE

.

46Hz-64Hz line frequency range with same calibration, phase compensation ± 7°

.

BROWNOUT 82µA typ, LCD 21µA typ, DAC active & SLEEP 0.7µA typ are 3 battery backup modes

.

8bit MPU 80515, 10MHz max, one clock cycle per instruction with integrated ICE for debug

.

Hardware watchdog timer, power-fail monitor I2C/MICROWIRE EEPROM Interface
