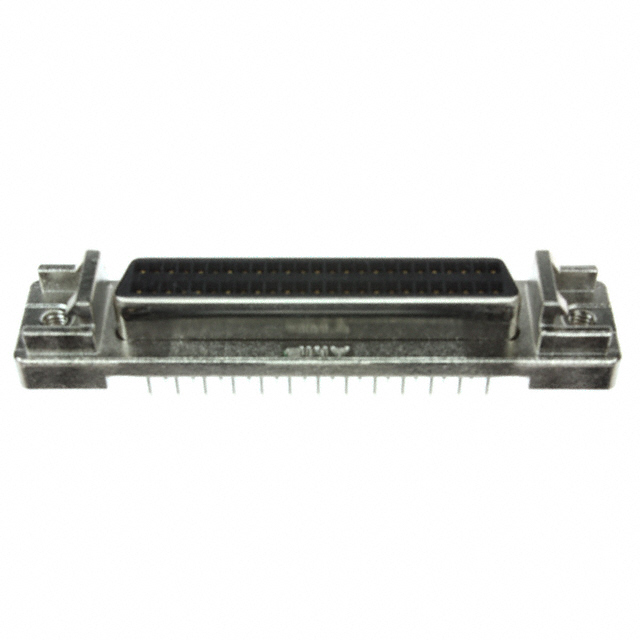

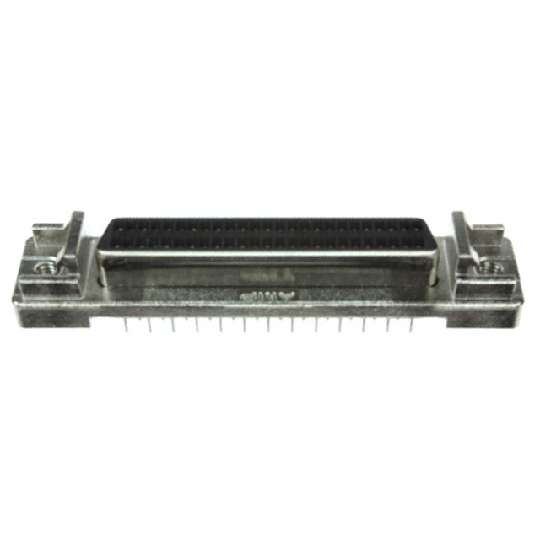

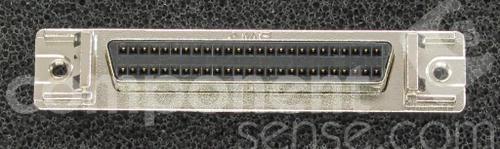

Conn D-Subminiature SKT 50POS 2.54mm Solder ST Thru-Hole 50 Terminal 1Port
50 50SR VERT RCPT ASSY
Product Highlights
Connector
Connector Type = Receptacle
Number of Positions = 50
PCB Mount Angle = Vertical
Through Hole Contact Termination Type
得捷:
CONN D-TYPE RCPT 50POS VERT SLDR
艾睿:
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Automotive Tube
安富利:
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port
Verical:
Conn D-Subminiature SKT 50 POS 2.54mm Solder ST Thru-Hole 50 Terminal 1 Port Automotive Tube
Newark:
# AMP - TE CONNECTIVITY 749069-5 50 50SR VERT RCPT ASSY New
MASTER:
RECEPTACLE ASSEMBLY, SHIELDED,VERTICAL,RAILED, AMPLIMITE .050 Series
Powell:
.050 Series Board Mount Connectors
Online Components:
50 50SR VERT RCPT ASSY
Electro Sonic:
50 50SR VERT RCPT ASSY
触点数 50
极性 Female
触点电镀 Gold
额定电流 1 A
排数 2
方向 Vertical
易燃性等级 UL 94 V-0
针脚数 50
屏蔽 Yes
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压Max 30 VAC
额定电压 30 V
工作电压Max 30 VAC
安装方式 Through Hole
引脚间距 1.27 mm
长度 52.5 mm
宽度 10.3 mm
高度 8.92 mm
引脚间距 1.27 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 105℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tube
制造应用 Signal
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Compliant
ECCN代码 EAR99
HTS代码 8536694040
