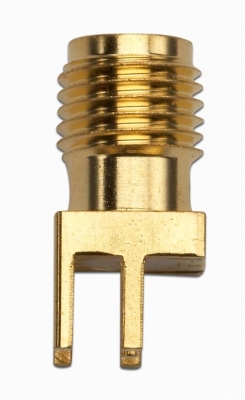

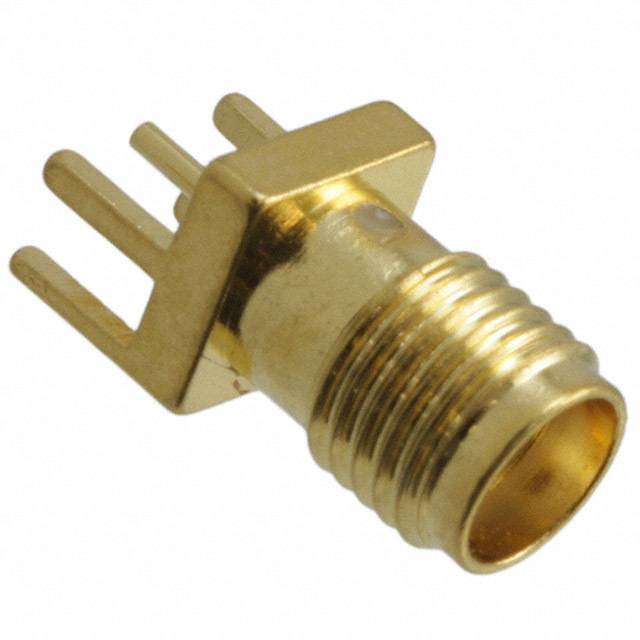

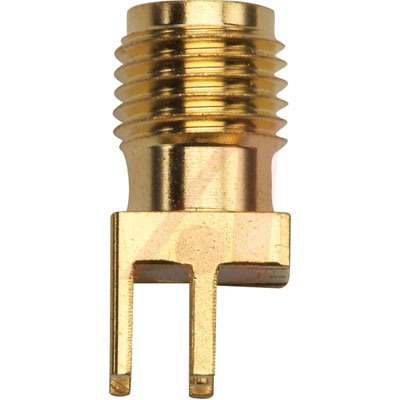

POMONA 72970 射频/同轴连接器, SMA 母, 直型, 50Ω, 焊接
Use the sma RF connector from Pomona in your radio-frequency design. This connector"s body is plated in gold. It has a straight body orientation. It has a receptacle type gender. It has an operating frequency of 0 to 18G Hz. This product is 6.5 mm long, 6.5 mm tall and 13.5 mm deep. It uses the solder termination method. This rf connector has an operating temperature of -65 to 165 °C.
得捷:
CONN SMA RCPT STR 50OHM EDGE MNT
贸泽:
RF连接器/同轴连接器 SMA STRAIGHT JACK PCB RECEP EDGE MOUNT
e络盟:
射频/同轴连接器, SMA 母, 直型, 50Ω, 焊接
艾睿:
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Edge Mount Gold
Allied Electronics:
SMA STRAIGHT JACK PCB RECEPTACLE EDGE MOUNT
Chip1Stop:
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Edge Mount Gold
Verical:
Conn SMA RCP 0Hz to 18GHz 50Ohm Solder ST Edge Mount Gold
