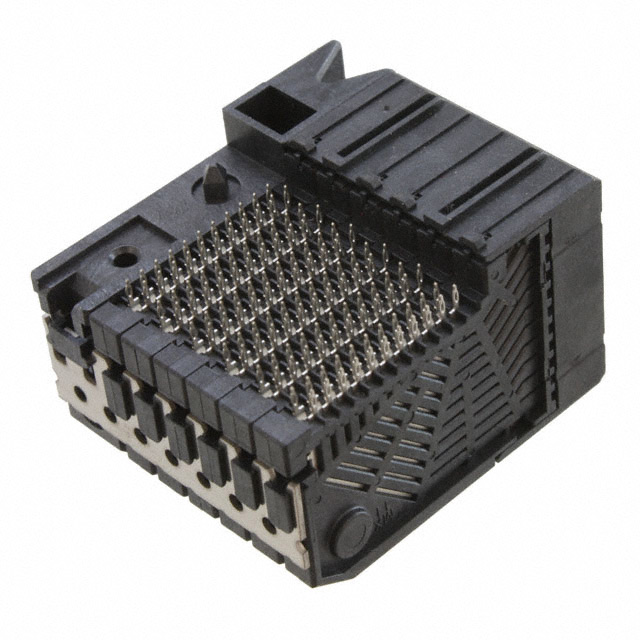

Conn Daughter Card RCP 132POS 3.7mm Press Fit RA Thru-Hole GbX I-Trac Tray
132 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black I-Trac, Guide Left
得捷:
I-TRAC DCARD SIGNAL MODULE - 6 C
艾睿:
Conn Daughter Card RCP 132 POS 3.7mm Press Fit RA Thru-Hole GbX I-Trac™ Tray
Newark:
# MOLEX 75710-3006 Connector, I-Trac Series, Backplane, 132 Contacts, Receptacle, 3.7 mm, Press Fit
MASTER:
Conn Daughter Card RCP 132 POS 3.7mm Press Fit RA Thru-Hole GbX I-Trac™ Tray
Win Source:
I-TRAC DCARD SIGNAL MODULE - 6 C / 132 Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black I-Trac, Guide Left
触点数 132
极性 Female
触点电镀 Tin, Gold
额定电流 1 A
排数 11
无卤素状态 Low Halogen
方向 Right Angle
电路数 132
易燃性等级 UL 94 V-0
针脚数 132
拔插次数 200
屏蔽 No
额定电流Max 1A/触头
工作温度Max 80 ℃
工作温度Min -55 ℃
额定电压 120 V
接触电阻Max 10 mΩ
安装方式 Through Hole
引脚间距 3.70 mm
高度 23.3 mm
引脚间距 3.70 mm
颜色 Black
触点材质 Copper Alloy
材质 Thermoplastic
工作温度 -55℃ ~ 80℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536694040
