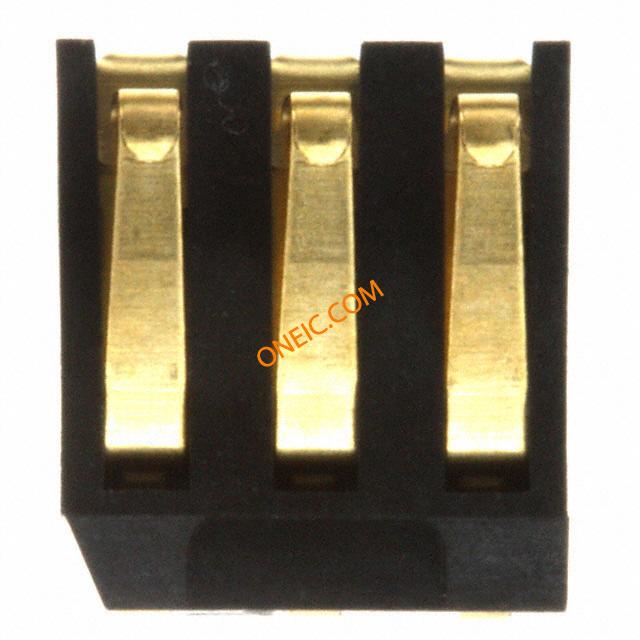

70AA /男性 - 模块化联系 70AA/Male - Modular Contact
针位弹簧 压缩触点,公型 连接器 表面贴装型
得捷:
CONN SPRING MOD MALE 3POS SMD
艾睿:
This modular contact 70AAJ-3-M0G power connector from Bourns comes in a variety of types to support AC or DC power entry modules. This M connector&s;s 3 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. It has a maximum voltage rating of 60 V. This connector has a single port. It has a male type gender. 70AAJ-3-M0G is housed in thermoplastic. This device has a maximum current rating of 3 A. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 7.54 mm long, 3.81 mm tall and 8.48 mm deep. Its 3 terminals use the solder termination method. This power connector has an operating temperature range of -55 °C to 125 °C.
Verical:
Conn Modular Contact M 3 POS 2.54mm Solder ST SMD 3 Terminal 1 Port T/R
Newark:
# BOURNS 70AAJ-3-M0G Battery Contact, Copper Alloy, 60 V, 3 Contact, Pin, SMD, 70AAJ Series
MASTER:
Battery Modular Contact - 2.54mm - Solder - 60 V - 3A - 3 Terminal - 1 Port.
Online Components:
Conn Modular Contact M 3 POS 2.54mm Solder ST SMD 3 Terminal 1 Port T/R
Electro Sonic:
Battery Modular Contact - 2.54mm - Solder - 60 V - 3A - 3 Terminal - 1 Port.
触点数 3
极性 Male
触点电镀 Gold
额定电压DC 60.0 V
绝缘电阻 1000 MΩ
排数 1
拔插次数 10000
额定电流Max 3 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压Max 60 V
额定电压 60 V
接触电阻Max 25 mΩ
安装方式 Surface Mount
封装 SMD
长度 7.54 mm
高度 3.81 mm
封装 SMD
触点材质 Copper Alloy
材质 Copper Alloy
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
