73043

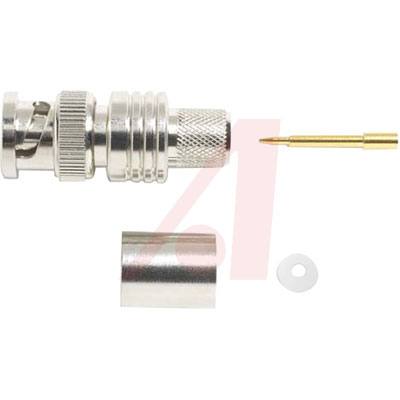

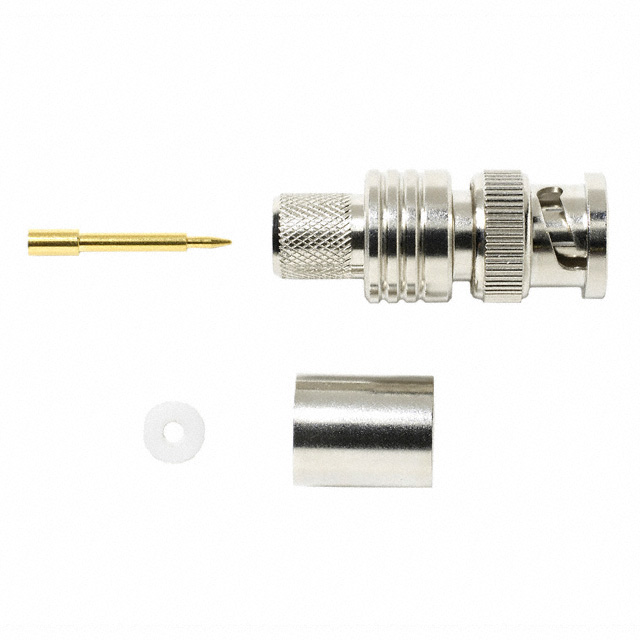

射频/同轴, BNC 插头, 直型, 50 Ω,

**Materials:** **Center Conductor, Male:** Phosphor Bronze, Gold Plated **Connector Body:** Brass, Nickel Plated **Crimp Ferrule:** Brass, Nickel Plated **Insulators:** PTFE **Specifications:** Impedance: 50 Ω Frequency Range: DC-2 GHz Contact Resistance: - Center Conductor: 1.5 mΩ - Outer Conductor: 0.2 mΩ Insulation Reistance: 5000 MΩ Dielectric Withstand Voltage: 1500 V For CE compliance, do not hold in hand when voltages exceed 33 VRMS/70 VDC Number of Insertions: 500 Cycles Minimum **Features:**

* DC-2 GHz Bandwidth

* Connectors Aare Precision Machined

* Connector Accepts Cable Types RG/U: 8, 9, 11, 213, 214
