Wire To Board Connector Kit

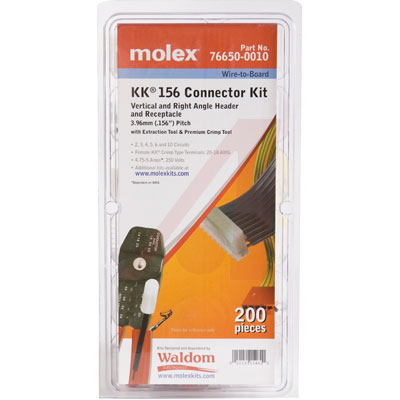

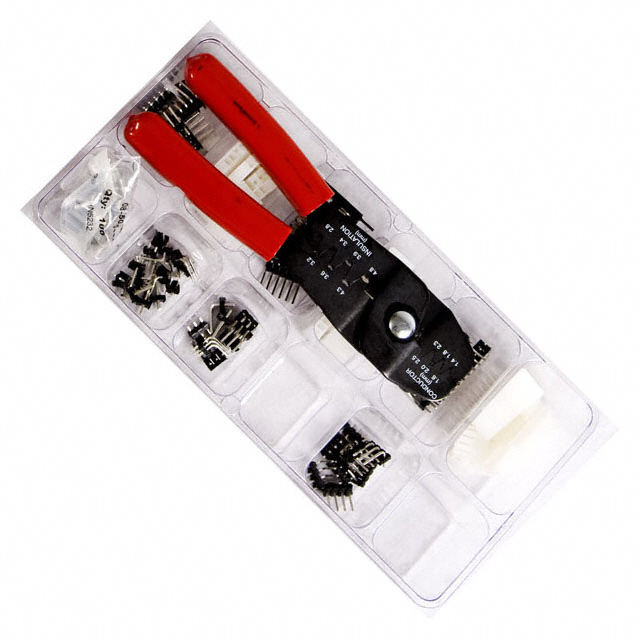

**_KK™ 0.156" Pitch Wire-to-Board Connector Kit with Premium Tool_**
* 08-50-0106-C863-0435 KK™ 0.156" Crimp Terminals, 24-18 AWG, Tin 100 Qty.
* 09-50-7021 863-0763 3.96 mm 0.156" Pitch, 2 Circuit KK™ Receptacle 14 Qty.
* 09-50-7031 863-0519 3.96 mm 0.156" Pitch, 3 Circuit KK™ Receptacle 8 Qty.
* 09-50-7041 863-0791 3.96 mm 0.156" Pitch, 4 Circuit KK™ Receptacle 8 Qty.
* 09-50-7051 863-0381 3.96 mm 0.156" Pitch, 5 Circuit KK™ Receptacle 6 Qty.
* 09-50-7061 863-0584 3.96 mm 0.156" Pitch, 6 Circuit KK™ Receptacle 6 Qty.
* 09-50-7101 863-0828 3.96 mm 0.156" Pitch, 10 Circuit KK™ Receptacle 8 Qty.
* 26-48-1021 3.96 mm 0.156" Pitch, 2 Circuit Vertical Breakaway Headers 7 Qty.
* 26-48-1022 3.96 mm 0.156" Pitch, 2 Circuit KK™ Right Angle Breakaway Headers 7 Qty.
* 26-48-1031 3.96 mm 0.156" Pitch, 3 Circuit KK™ Vertical Breakaway Headers 4 Qty.
* 26-48-1032 3.96 mm 0.156" Pitch, 3 Circuit KK™ Right Angle Breakaway Headers 4 Qty.
* 26-48-1041 3.96 mm 0.156" Pitch, 4 Circuit KK™ Vertical Breakaway Headers 4 Qty.
* 26-48-1042 3.96 mm 0.156" Pitch, 4 Circuit KK™ Right Angle Breakaway Headers 4 Qty.
* 26-48-1051 3.96 mm 0.156" Pitch, 5 Circuit KK™ Vertical Breakaway Headers 3 Qty.
* 26-48-1052 3.96 mm 0.156" Pitch, 5 Circuit KK™ Right Angle Breakaway Headers 3 Qty.
* 26-48-1061 3.96 mm 0.156" Pitch, 6 Circuit KK™ Vertical Breakaway Headers 3 Qty.
* 26-48-1062 3.96 mm 0.156" Pitch, 6 Circuit KK™ Right Angle Breakaway Headers 3 Qty.
* 26-48-1101 3.96 mm 0.156" Pitch, 10 Circuit KK™ Vertical Breakaway Headers 3 Qty.
* 26-48-1102 3.96 mm 0.156" Pitch, 10 Circuit KK™ Right Angle Breakaway Headers 3 Qty.
* W-HT-1884 863-0515 Extraction Tool 1 Qty.
* 63811-1000 607-0204 Premium Crimping Tool 1 Qty.
