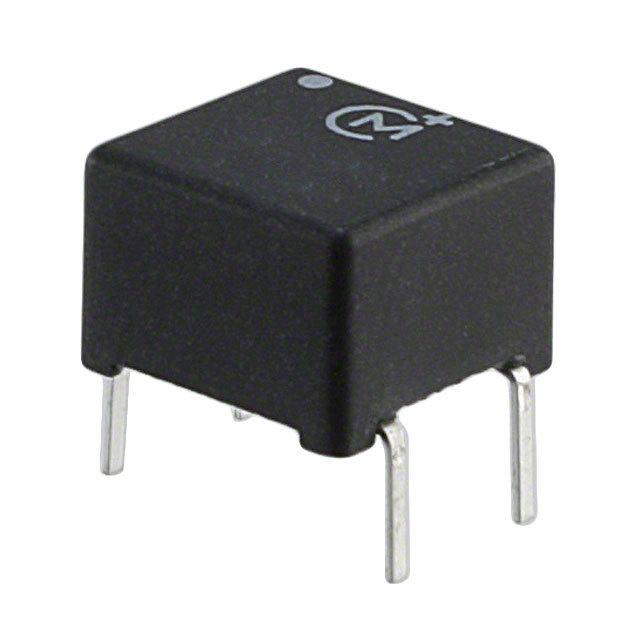

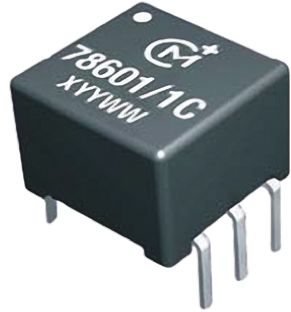

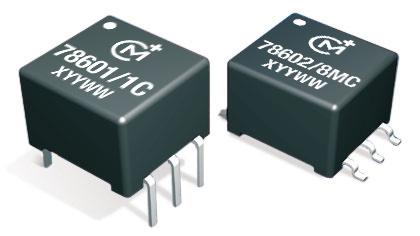

MURATA POWER SOLUTIONS 78601/16C 脉冲变压器, 1:1, 4000uH, DIP
脉冲 786 系列
通用脉冲变压器，用于耦合、闸流晶体管/三端双向可控硅开关元件和小型开关模式电源应用
串联任何两个绕组可以修改标准匝数比
也可在滤波应用中用作共模扼流圈
得捷:
TRANSFORMER 1:1:1 5000UH 28VUS
欧时:
### 脉冲变压器 786 系列通用脉冲变压器，用于耦合、闸流晶体管/三端双向可控硅开关元件和小型开关模式电源应用 串联任何两个绕组可以修改标准匝数比 也可在滤波应用中用作共模扼流圈 ### 600 Ohm 线路隔离，脉冲匹配和高频变压器
贸泽:
Pulse Transformers 5000uH 1:1 Turns
e络盟:
脉冲变压器, 1:1, 4000uH, DIP
艾睿:
Use this 78601/16C pulse transformer from Murata Power Solutions to minimize distortion when transmitting rectangular electrical pulses in your circuit. This pulse transformer has a minimum operating temperature of 0 °C and a maximum of 70 °C. It has 6 terminals. This product is 9.52 mm long, 6.35 mm tall and 9 mm deep. The maximum DCR on the primary side is 0.84 Ohm. It has a turn ratio of 1:1. It also has a general purpose pulse transformer.
安富利:
Pulse Transformer 1:1 1000Vrms 0.84Ohm Prim. DCR 78pF 28Vus Through Hole
Chip1Stop:
Pulse Transformer 1:1 1000Vrms 0.84Ohm Prim. DCR 78pF 6Term. PC Pin Thru-Hole
Verical:
Pulse Transformer 1:1 1000Vrms 0.84Ohm Prim. DCR 78pF 6 Terminal PC Pin Thru-Hole
Newark:
# MURATA POWER SOLUTIONS 78601/16C Pulse Transformer, Low Profile, 1:1, 4 mH, 0.84 ohm, 28 Vµs, 1 kV, 786 Series
