73052

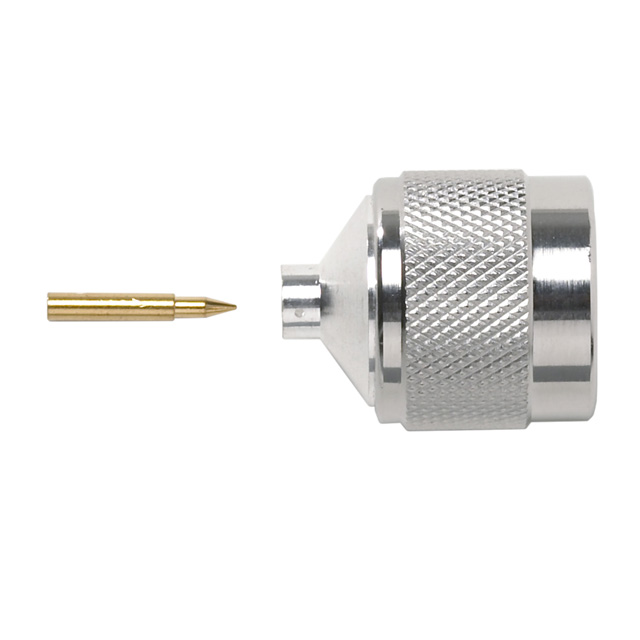

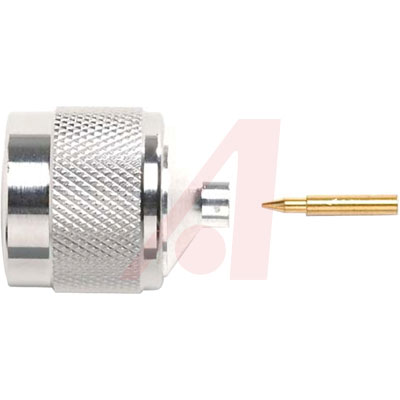

RF连接器/同轴连接器 N STRAIGHT PLUG CRIMP 402 / 3.58

**Materials:**

**Center Conductor, Male:** Brass, Gold Plated

**Connector Body:** Brass, Nickel Plated and Silver Plated

**Insulators:** PTFE

**Gasket:** Silicone Rubber

**Specifications:**

* Impedance: 50 Ω

* Frequency Range: DC–11 GHz

* Contact Resistance:

\- Center Conductor: ≤1.0 mΩ

* Outer Conductor: ≤0.2 mΩ

* Insulation Reistance: ≤5000 MΩ

* Dielectric Withstand Voltage: 1500 V

* For CE compliance, do not hold in hand when voltages exceed 33 V/70 VDC

* VSWR: ≤1.4 V

* Number of Insertions: 500 Cycles Minimum

* DC–11 GHz Bandwidth

* Connectors Are Precision Machined

* Meets Interface Requirements MIL-C-39012

* Connector Accepts Cable Types RG/U: 402
