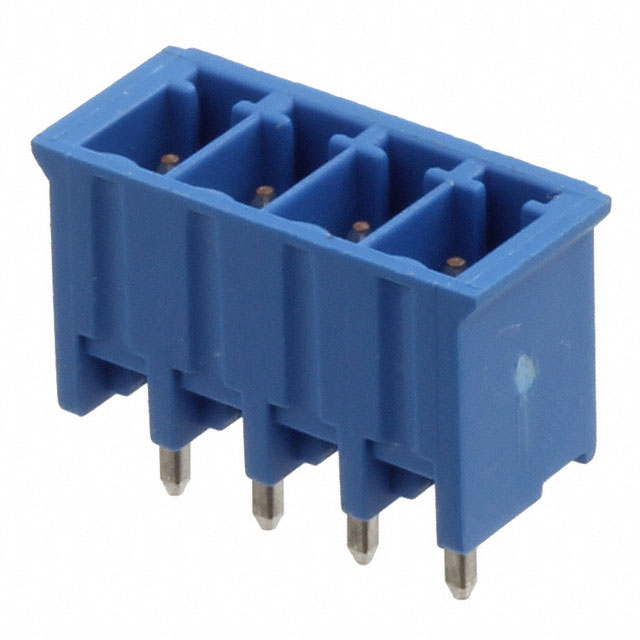

796694-4

Conn Shrouded Header HDR 4POS 3.5mm Solder ST Thru-Hole

4 针位端子块 接头，公引脚，带罩（4 面） 0.138"（3.50mm） 垂直 - 通孔

得捷:
TERM BLOCK HDR 4POS VERT 3.5MM

艾睿:
Use this shrouded 796694-4 connector from TE Connectivity when board-to-board interconnects is required. This HDR connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 300 VAC. Its pitch is 3.5 mm. It has a straight body orientation. This device has a maximum current rating of 11 A/contact. This product is 16 mm long, 9.2 mm tall and 7.25 mm deep. 796694-4 is housed in blue polyamide 6/6. It uses the solder termination method.

安富利:
Conn Shrouded Header HDR 4 POS 3.5mm Solder ST Thru-Hole

Verical:
Conn Shrouded Header 4 Sides HDR 4 POS 3.5mm Solder ST Thru-Hole Box

Newark:
# AMP - TE CONNECTIVITY  796694-4  4 POS TERMI-BLOK HDR DIR. POL. New

MASTER:
TERMI BLOK, HEADER ASSEMBLY, STRAIGHT, CLOSED ENDS, 3.5 mm PITCH

Powell:
Terminal Block Connectors

Online Components:
4 POS TERMI-BLOK HDR DIR. POL.

Electro Sonic:
4 POS TERMI-BLOK HDR DIR. POL.

Win Source:
TERM BLOCK HDR 4POS VERT 3.5MM / 4 Position Terminal Block Header, Male Pins, Shrouded 4 Side 0.138" 3.50mm Vertical Through Hole
