74AC16374DLG4

16位边沿触发的D型触发器具有三态输出 16-BIT EDGE-TRIGGERED D-TYPE FLIP-FLOPS WITH 3-STATE OUTPUTS

description

The ’AC16374 are 16-bit edge-triggered D-type flip-flops with 3-state outputs designed specifically for driving highly capacitive or relatively low-impedance loads. They are particularly suitable for implementing buffer registers, I/O ports, bidirectional bus drivers, and working registers.

• Members of the Texas Instruments Widebus™ Family

• 3-State True Outputs

• Full Parallel Access for Loading

• Flow-Through Architecture Optimizes PCB Layout

• Distributed VCC and GND Pin Configuration Minimizes High-Speed Switching Noise

• EPIC Enhanced-Performance Implanted CMOS 1-µm Process

• 500-mA Typical Latch-Up Immunity at 125°C

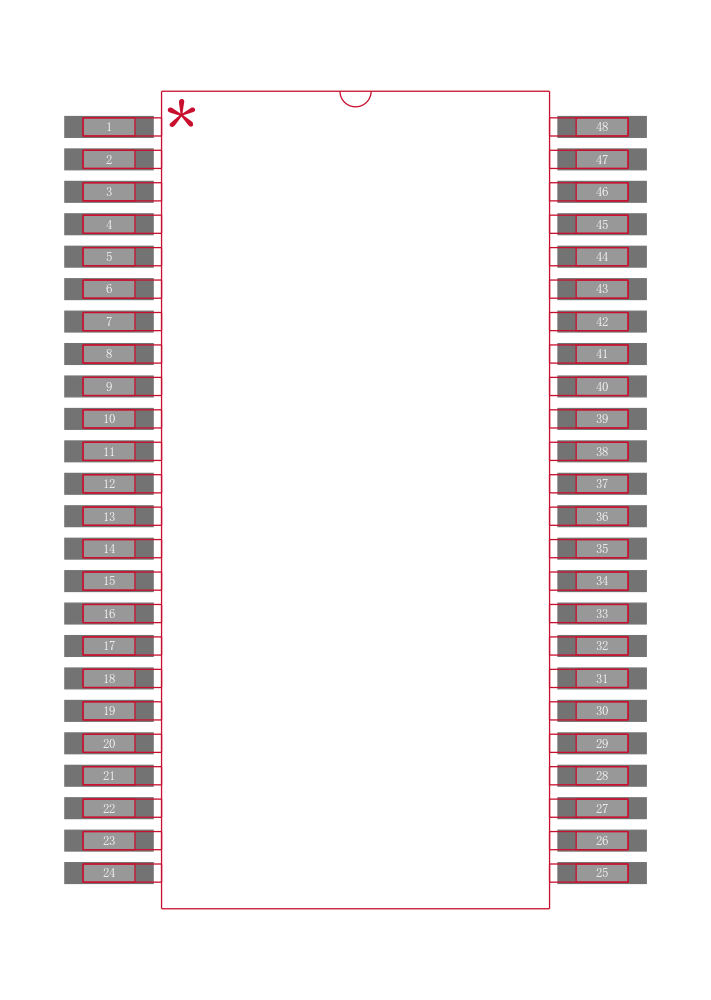

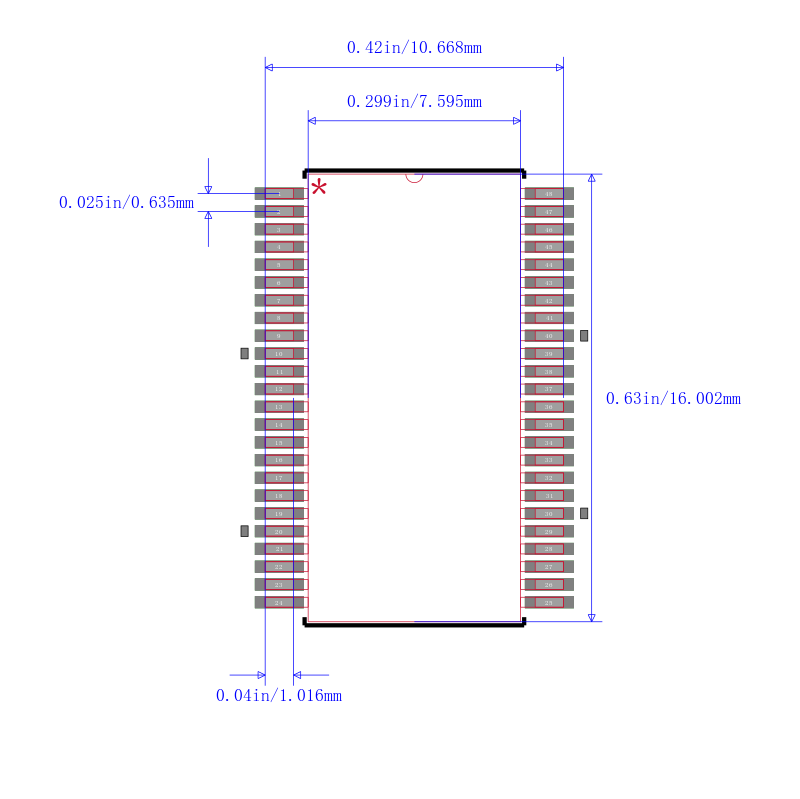

• Package Options Include Plastic 300-mil

   Shrink Small-Outline DL Packages Using

   25-mil Center-to-Center Pin Spacings and

   380-mil Fine-Pitch Ceramic Flat WD

   Packages Using 25-mil Center-to-Center

   Pin Spacings
