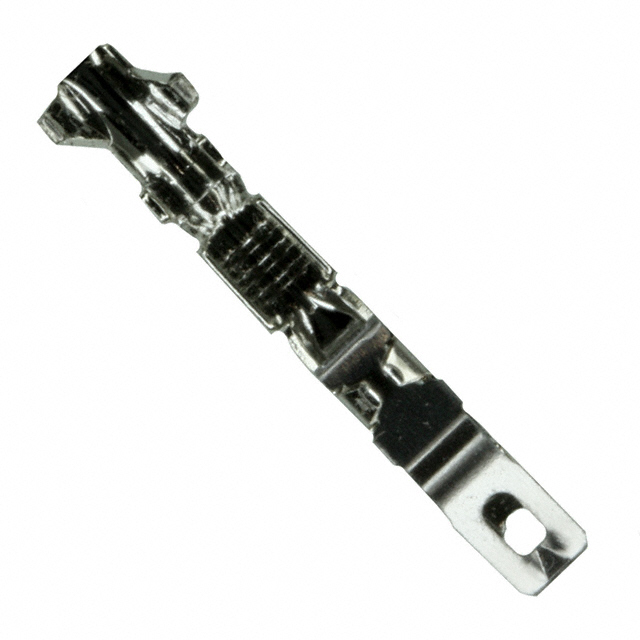

CONN SOCKET 22-26AWG TIN CRIMP
\- 插口 触点 锡 - 铅 22-26 AWG 压接
得捷:
CONN SOCKET 22-26AWG CRIMP TIN
贸泽:
Headers & Wire Housings LOCKING CLIP
艾睿:
Contact SKT Crimp ST Cable Mount Automotive Strip
Verical:
Contact SKT Crimp ST Cable Mount Automotive Strip
Newark:
# AMP - TE CONNECTIVITY 87124-2 LOCKING CLIP CONT ASSY .025 SQ New
MASTER:
CONTACT - LOCKING CLIP FOR 0.64[.025] SQUARE POST
Online Components:
LOCKING CLIP CONT ASSY .025 SQ
Electro Sonic:
LOCKING CLIP CONT ASSY .025 SQ
极性 Female
线规 22AWG ~ 26AWG
触点电镀 Tin over Nickel, Tin Lead
额定电压AC 250 V
额定电流 3 A
绝缘电阻 5.00 GΩ
触点额定电流 3.00 A
额定电流Max 3 A
工作温度Max 105 ℃
工作温度Min -65 ℃
额定电压Max 250 VAC
额定电压 250 VAC
接触电阻Max 16 mΩ
高度 2.97 mm
触点材质 Phosphor Bronze
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8538908080
