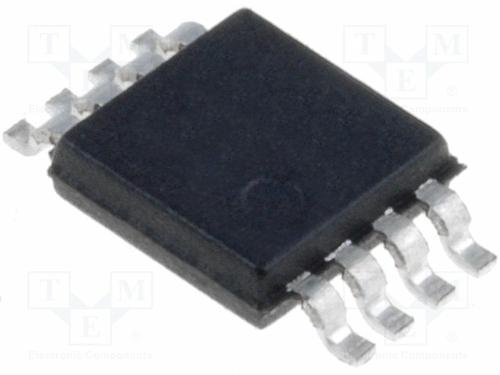

93LC46系列 1Kb 128x8 3V MSOP-8 Microwire 串行 电可擦除
**Features:**
* Automatic ERAL Before WRAL
* Self-Timed Erase and Write Cycle
* Power On/Off Data Protection Circuitry
* Sequential Read Function
* Industry Standard 3-Wire Serial I/O
得捷:
IC EEPROM 1KBIT MICROWIRE 8MSOP
立创商城:
93LC46A-I/MS
贸泽:
电可擦除可编程只读存储器 128x8
艾睿:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin MSOP Tube
Allied Electronics:
IC EEPROM 1KBIT 2MHZ 8MSOP
安富利:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin MSOP Tube
Chip1Stop:
EEPROM Serial-Microwire 1K-bit 128 x 8 3.3V/5V 8-Pin MSOP Tube
TME:
Memory; EEPROM; Microwire; 128x8bit; 2.5÷5.5V; 2MHz; MSOP8
频率 2.00 MHz
电源电压DC 5.00 V, 5.50 V max
工作电压 2.5V ~ 5.5V
时钟频率 2 MHz
存取时间 6 ms
内存容量 125 B
输入电容 7 pF
存取时间Max 250 ns
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.5V ~ 5.5V
安装方式 Surface Mount
引脚数 8
封装 MSOP-8
长度 3 mm
宽度 3 mm
高度 0.85 mm
封装 MSOP-8
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
