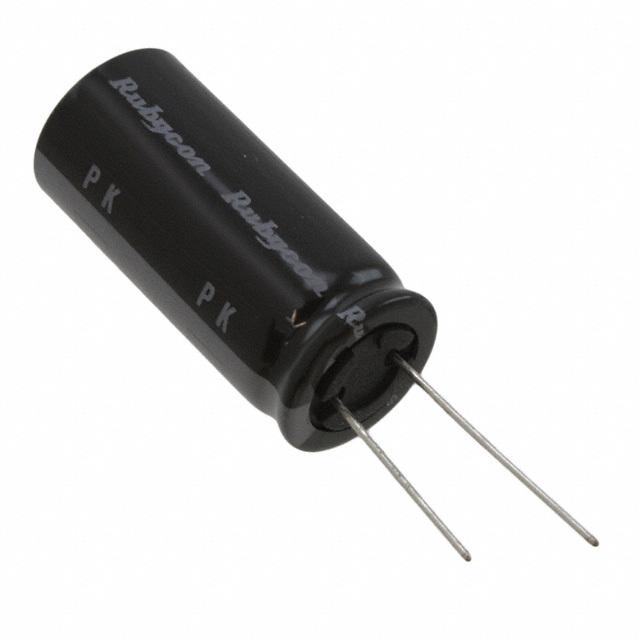

RUBYCON 50PK4700MEFC18X40 铝电解电容, 微型, PK系列, 4700 µF, ± 20%, 50 V, 18 mm, 径向引线
The is a radial leaded aluminium Electrolytic Capacitor. The aluminium electrolytic capacitor has a feature in that it is small in size, large in capacity and highly resistant to overvoltage and reverse voltage as compared with other capacitors. Capacitor of this type is used in wide applications ranging from navigation systems requiring high performance and high reliability to AV audio and visual equipment and camera flashes.
- .
- PET sleeve
- .
- 2800mA RMS at 120kHz/+85°C Rated ripple current
额定电压DC 50.0 V
电容 4700 µF
容差 ±20 %
纹波电流 2800 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 50 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 7.5 mm
高度 40 mm
直径 18.0 mm
封装 Radial, CAN
引脚间距 7.5 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
最小包装 200
寿命（小时） 2000h @85℃
制造应用 多媒体, 计算机和计算机周边, Computers & Computer Peripherals, Aerospace, Defence, Military, Consumer Electronics, 通用, 国防, Multimedia, 国防, 军用与航空, 军用与航空, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
军工级 Yes
