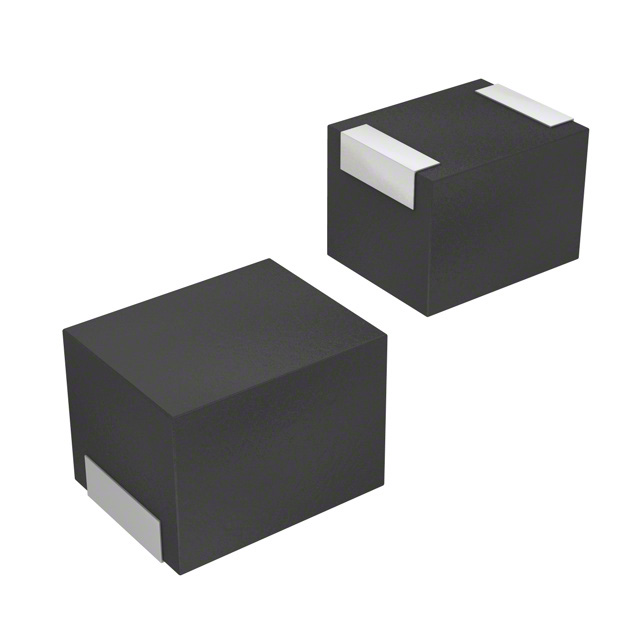

NL322522T-390J

NL322522T-390J 39UH 3225-390J 390J

电感值Inductance| 39UH \---|--- 误差Tolerance| ±5% 额定电流Current Rating| 65mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 30 @ 2.52MHz 自振谐频率SRFFrequency - Self Resonant| 16MHz DC电阻DCRDC Resistance DCR| 6.4Ω/Ohm 屏蔽Shielding| 屏蔽 Shielded Description & Applications| NL Series NL3225 Type FEATURES • The NL series are available in 5 form factors ranging from 2016 to 5650. • Utilizing a miniaturized winding structure, these products provide high Q characteristics. • Inductance tolerance is ±5 percent. 描述与应用| NL系列NL3225类型 特点 NL系列5种形式因素，从2016到5650不等。 •利用微型绕组结构，具有高Q特性。 •电感容差为±5％。
