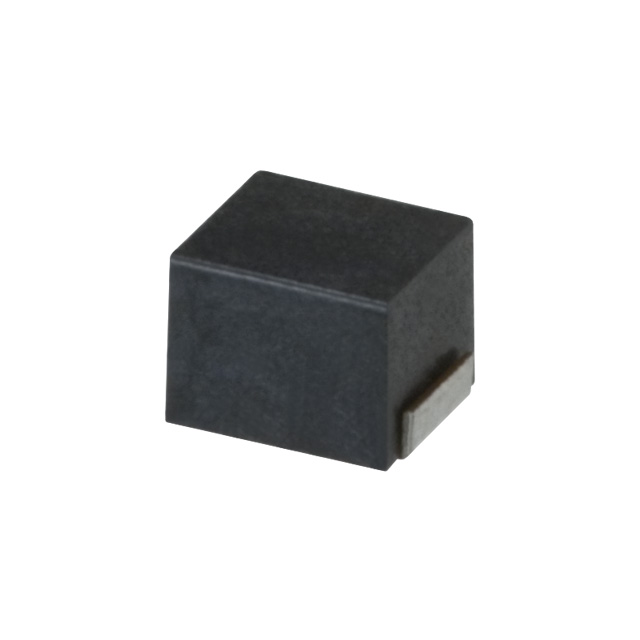

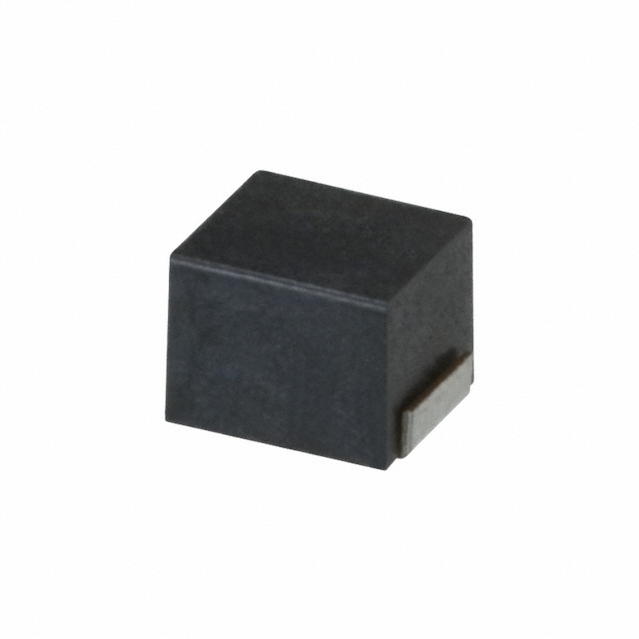

TDK NLV25T-470J-PF 信号线电感, 47uH, 1005
固定器
得捷:
FIXED IND 47UH 80MA 11.1 OHM SMD
立创商城:
47uH ±5% 11.1Ω
艾睿:
This rf chip NLV25T-470J-PF surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 105 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It has a tolerance of 5%. It has an inductance of 47u H. This product is 2.7 mm long, 1.9 mm tall and 2.1 mm deep. This SMD inductor has a maximum DC current of 80m A with a maximum resistance of 11.1 Ohm. Its test frequency is 2.52M Hz, while its minimum self-resonant frequency is 17M Hz. This device utilizes wirewound technology.
安富利:
Ind RF Chip Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor 80mA 1008 T/R
Chip1Stop:
Inductor RF Chip Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor Ferrite 80mA 11.1Ohm DCR 1008 T/R
Verical:
Inductor General Purpose Chip Molded/Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor Ferrite 0.08A 11.1Ohm DCR 1008 T/R
Newark:
# TDK NLV25T-470J-PF Surface Mount High Frequency Inductor, NLV Series, 47 µH, 80 mA, SMD, Wirewound, 11.1 ohm
MASTER:
Inductor RF Chip Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor Ferrite 80mA 11.1Ohm DCR 1008 T/R
Electro Sonic:
Inductor RF Chip Unshielded Wirewound 47uH 5% 2.52MHz 20Q-Factor Ferrite 80mA 11.1Ohm DCR 1008 T/R
Win Source:
47μH Unshielded Wirewound Inductor 80mA 11.1 Ohm Max 1008 2520 Metric
额定电流 80 mA
容差 ±5 %
电感 47 µH
自谐频率 17 MHz
Q值 20.0
产品系列 NLV-PF
电阻 11.1 Ω
共振频率 17.0 MHz
屏蔽 No
电感公差 ±5 %
测试频率 2.52 MHz
电阻DC) ≤11.1 Ω
额定电流DC 80 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
精度 ±5 %
电阻DC Max 11.1 Ω
安装方式 Surface Mount
引脚数 2
封装公制 2520
封装 1008
长度 2.5 mm
宽度 2.5 mm
高度 1.9 mm
封装公制 2520
封装 1008
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended
包装方式 Tape & Reel TR
最小包装 2000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NLV25T-470J-PF TDK 东电化 | 当前型号 | 当前型号 |
NLV25T-470J-EF 东电化 | 类似代替 | NLV25T-470J-PF和NLV25T-470J-EF的区别 |
ELJ-FC470JF 松下 | 功能相似 | NLV25T-470J-PF和ELJ-FC470JF的区别 |
ELJFC470JF 松下 | 功能相似 | NLV25T-470J-PF和ELJFC470JF的区别 |
