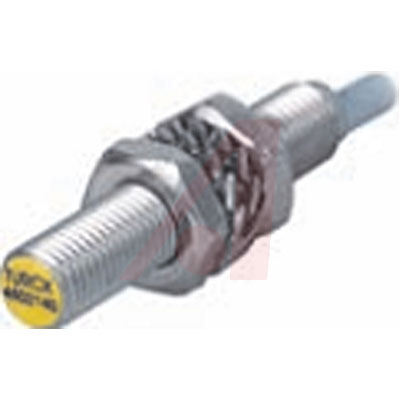

BI 2-EG08-AN6X

Sensor; Inductive Proximity; Embeddable; 3-wire; 8mm Dia., 1.5mm Range, NPN Output

.

*_picoprox_**® miniature inductive proximity sensors. Perfect for positioning control, small parts placement, robotic grippers, counting, inspecting and other applications where space is a problem. Self contained DC units switch 100 mA loads with tiny 4 mm, 5 mm, 6.5 mm and 8 mm diameter housings with built-in LEDs.

**Features:**

* Choice of Barrel with Potted-In Cable, M8 **_picofast_**®, M12 **_eurofast_**®, Quick-Disconnect or Terminal Chamber

* Short-Circuit and Overload Protected

* Reverse Polarity and Wire Break Protection

* LED Indicator: Output Energized Additional Power on LED, Terminal Chamber Versions

* Normally Open Output

**Specifications:**

* Environment Rating: NEMA 1, 3, 4, 6, 13; IP67

* Operating Temperature: –13°F to +158°F

* Voltage Drop: 1.8 VDC at Max. Load Current
