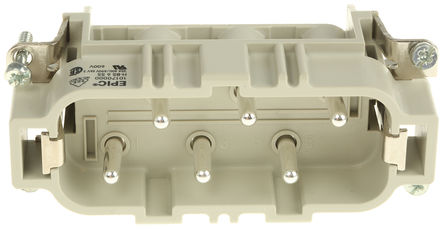

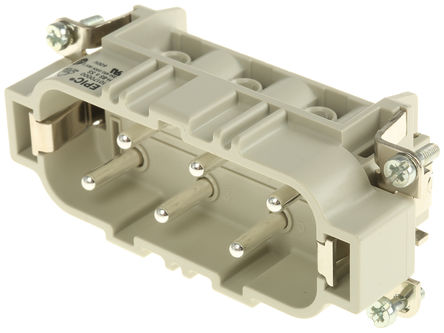

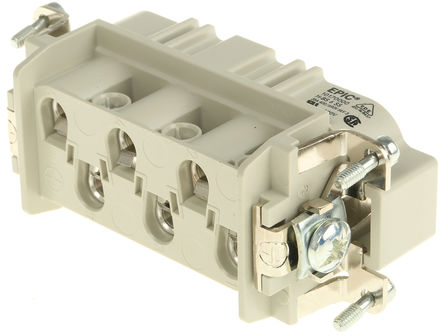

H-BS Inserts
H-BS 6 way inserts fit in H-BE 16 hoods and housings
H-BS 12 way inserts fit in H-BE 32 hoods and housings
12 way version needs 6 way 1-6 pin + 12 way 7-12 pin inserts
For hoods and housings see typically stock no. 448-727
Thermoplastic resin body
Working voltage | 440Vac
---|---
Test voltage | 3.5kVac
Contact resistance | <0.5mΩ
Working current/ambient |
temp. 6.0mm2 cable | 35A/<60°C
| 30A/80°C
| 20A/100°C
| 7A/120°C
Temperature range | -40°C to +125°C
Insulation group | VDE0110 group C
Environmental rating | IP65
### 认可
UL recognised component; CSA cerfified
