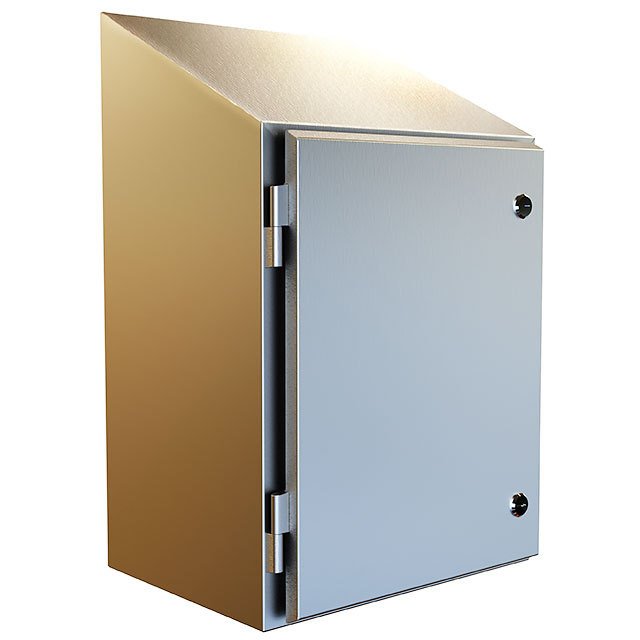

电气外壳 304SS Wallmount Rack 35.5"H x 24"W x 12"D
* Designed to Enclose Electrical and/or Electronic Equipment and Protect Against Harsh Industrial Environments for Wall Mount Applications
* Sloped Top Prevents Water from Resting on Top and Provides Potential for Controls Mounting
* Unique Hinge Design Allows for Easy Cleaning in Hose-Down Environments
* A Wide Range of Sizes and Practical Accessories Make This Product Line a Complete Package
* Formed 304 or 316L Stainless Steel
* Continuously Welded Seams Ground Smooth
* Door Stiffeners Are Provided Where Required for Increased Strength and Rigidity — Designed to Also Permit Additional Mounting Options
* Formed Lip on Enclosure to Exclude Flowing Liquids and Contaminants
* Door Latch 316 Stainless Steel Quarter Turns Feature the Added Safety of Quarter Turn Slot Requiring Use of Tool for Opening
* Door Hinges 316 Stainless Steel Are Easy to Clean, Provide 180° Opening, Are Easily Removed for Modifications and Are Interchangeable
* Seamless, Poured-In Place Gasket
* Collar Studs Provided for Mounting Inner Panel
* Includes Hardware Kit with Panel Mounting Nuts and Sealing Washers for Wall Mounting Holes
* Bonding Stud Provided on Door and Grounding Stud Installed in Enclosure
* Cover and Enclosure are Natural Stainless Steel with a Smooth Brushed Finish
* UL 508 Type 3R, 4, 4X and 12
* CSA Type 3R, 4, 4X and 12
* NSF — ANSI 169
* Complies with NEMA 3R, 4, 4X, 12 and 13 and IEC 60529, IP66
