HGTG11N120CND

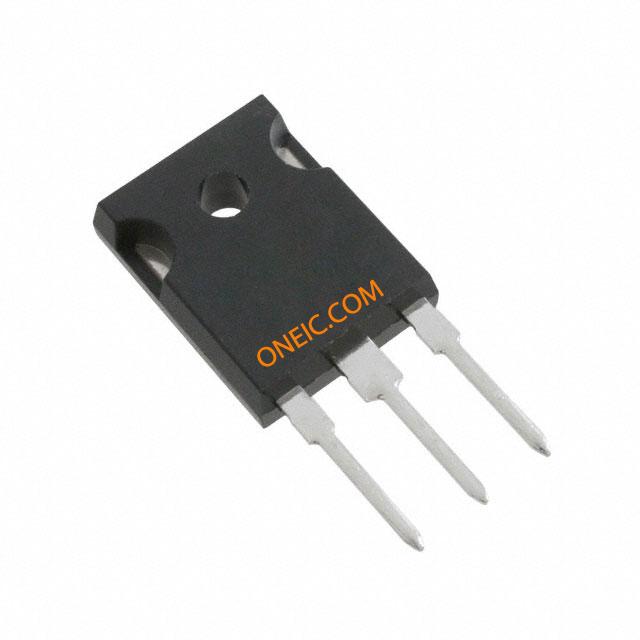

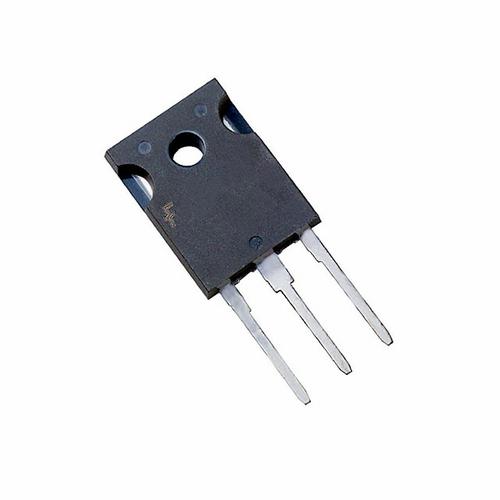

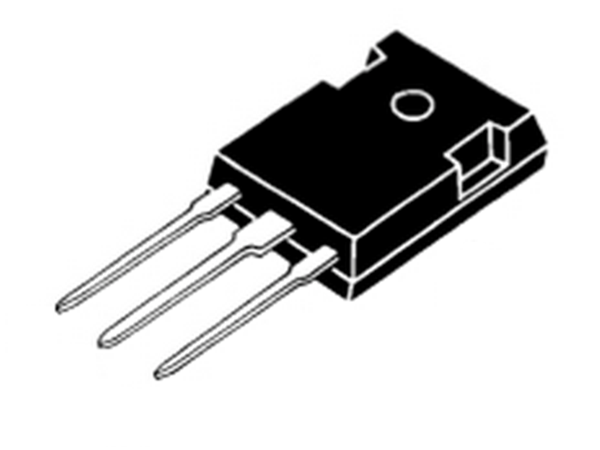

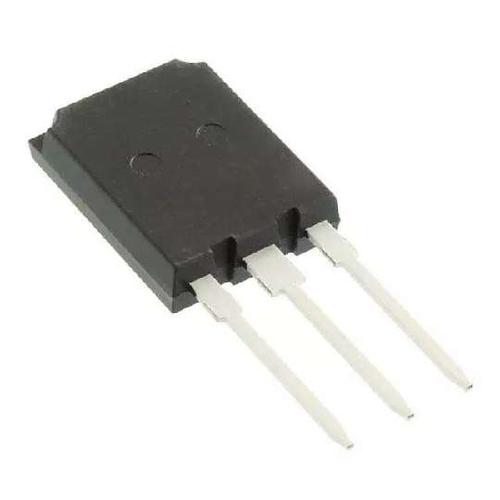

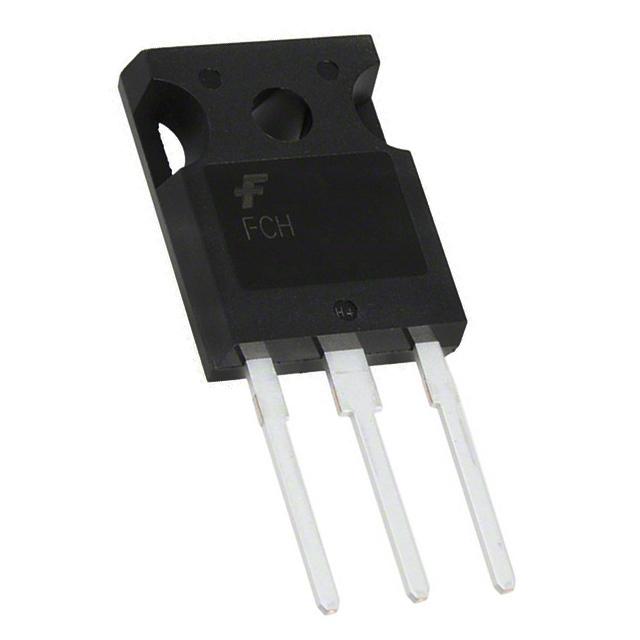

FAIRCHILD SEMICONDUCTOR  HGTG11N120CND  单晶体管, IGBT, 43 A, 2.4 V, 298 W, 1.2 kV, TO-247, 3 引脚

The is a 1200V N-channel IGBT with anti-parallel hyper fast diode. It is in a non-punch through NPT IGBT design. This NPT series is a new member of the MOS gated high voltage switching IGBT family. IGBT combines the best features of MOSFET and bipolar transistors. This device has the high input impedance of a MOSFET and the low on-state conduction loss of a bipolar transistor. Offers lower conduction loss and lower switching loss for designing high efficiency and reliable systems. offers an extensive portfolio of IGBT devices by various process technologies from 300V to greater than 1200V. Optimized manufacturing process results in better control and repeatability of the top-side structure, resulting in tighter specifications and better EMI performance. This product is general usage and suitable for many different applications.

.

340ns at TJ = 150°C Fall time

ESD sensitive device, take proper precaution while handling the device.
