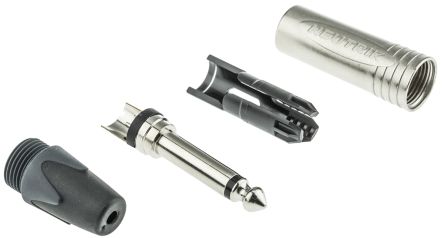

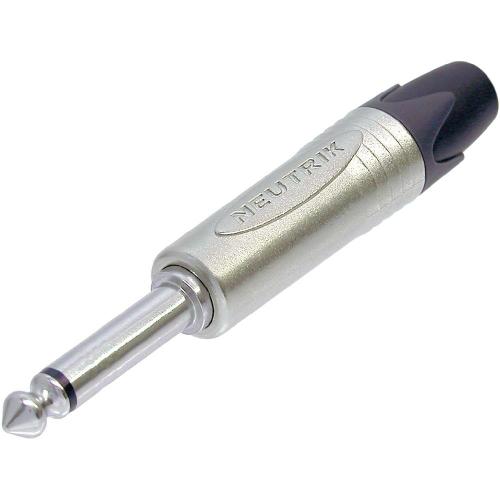

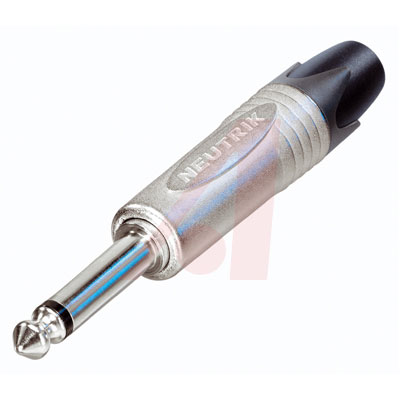

NEUTRIK NP2X 连接器, 音频, 公, 2路
X-系列 1/4 in. 专业型插头
超薄 1/4 in. 插头,带压铸外壳
改进型卡盘式应力消除装置,能可靠保持电缆
精密机制单件式接触 - 避免触点电路耦合
欧时:
2-POLE 1/4"" PLUG
e络盟:
手机音频连接器, 专业版, 2 触点, 插头, 6.35 mm, 电缆安装, 镀镍触芯, 金属主体
艾睿:
Conn 1/4" Phone Plug PL 2 POS Solder ST Cable Mount 2 Terminal 1 Port
Allied Electronics:
Plug, Phone; 18 AWG; Solder; 4 to 7; ZnAl4Cu1; Nickel/Chrome; 3.66 in.; 14.5 mm
TME:
Plug; Jack 6,3mm; male; mono; straight; for cable; soldering; 4÷7mm
Verical:
Conn 1/4" Phone Plug PL 2 POS Solder ST Cable Mount 2 Terminal 1 Port
Newark:
# NEUTRIK NP2X Phone Audio Connector, Professional, 2 Contacts, Plug, 6.35 mm, Cable Mount, Nickel Plated Contacts
MASTER:
PX Series - 1/4" professional phone plug - 2 pole - nickel contacts - nickel shell The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chu
Online Components:
Conn 1/4"" Phone Plug PL 2 POS Solder ST Cable Mount 2 Terminal 1 Port
Electro Sonic:
PX Series - 1/4" professional phone plug - 2 pole - nickel contacts - nickel shell The heavy duty professional phone ...
触点数 2
极性 Male
线规 18.0 AWG
触点电镀 Nickel
额定电流 15 A
绝缘电阻 2.0 GΩ
方向 Straight
拔插次数 1000
额定电流Max 15 A
工作温度Max 65 ℃
工作温度Min -20 ℃
安装方式 Solder
封装 Metal
长度 92.964 mm
直径 14.5 mm
封装 Metal
电缆长度 92.0 mm
颜色 Nickel
触点材质 Brass
工作温度 -20℃ ~ 65℃
产品生命周期 Active
制造应用 消费电子产品, Audio, 音频, Consumer Electronics
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NP2X Neutrik | 当前型号 | 当前型号 |
PSG01472 PRO Signal | 类似代替 | NP2X和PSG01472的区别 |
NYS224 REAN | 功能相似 | NP2X和NYS224的区别 |
FCR11650EW Cliff | 功能相似 | NP2X和FCR11650EW的区别 |
