LED PRISM 3MM BLUE/BLUE/BLUE SMD
In business since 1938, has been pioneering some of the most innovative applications in LED technology since it was developed in the early 1970s. Our LED products for the electronics industry have given engineers better ways to indicate status on all kinds of equipment.
We put our expertise to work for you by designing the most reliable and cost-effective LED products available. Dialight has the resources to design and produce everything in-house and is supported by a global sales and distribution network. So if you"re looking for the best and brightest in LEDs, look no further than Dialight.

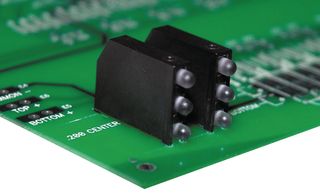

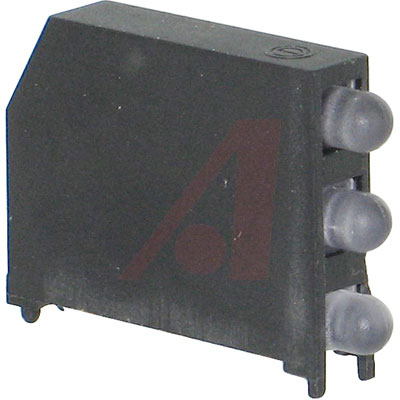

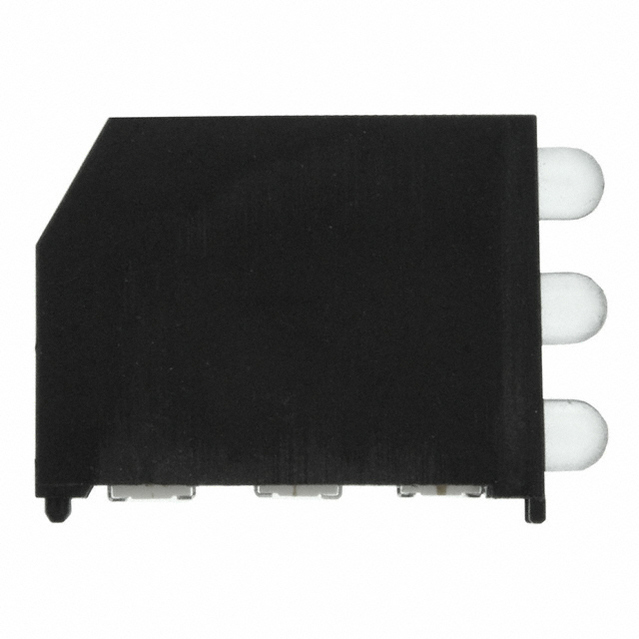

Dialight"s 593 Series 3 mm Tri-level Circuit Board Indicators incorporate the latest LED technology and are specifically designed for surface mounting. Their patented tri-level design provides increased indication without increased circuit board space and their black housing enhances displayed contrast ratio.
The LED spacing and placement is compatible with industry standard 3 mm through-hole tri-level circuit board indicators and their surface mount design helps to eliminate mixed technology pc board processing.
593 Series Indicators are packaged in moisture barrier bags for dry packaging per IPC/JEDEC J-STD-033, moisture sensitivity level 2.
Features:
Compatible with automatic placement equipment
Compatible with surface mount reflow soldering processes
Housing material meet UL-94V-0 flammability ratings
RoHS Compliant
