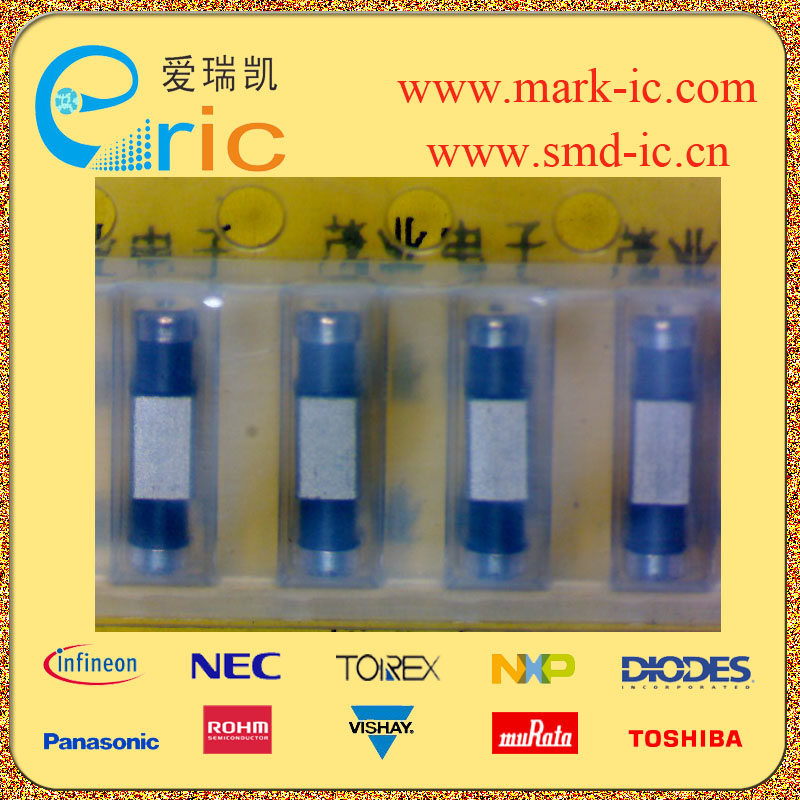

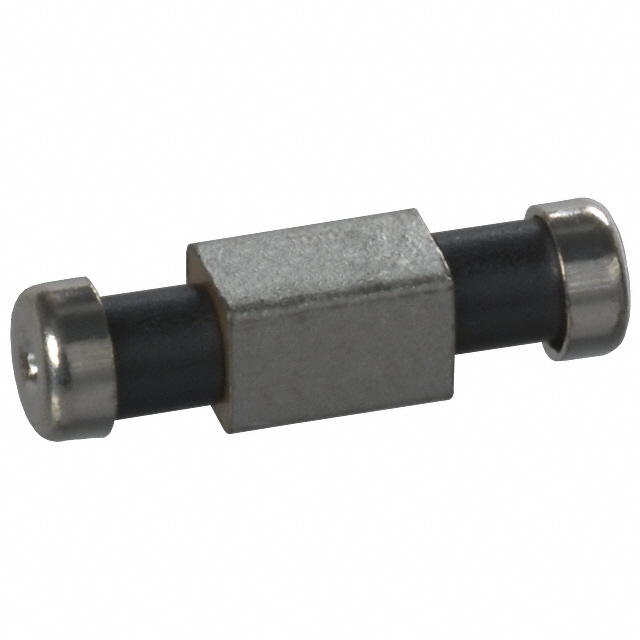

NFE61PT181B1H9L

NFE 系列 180 pF 2 A 30 % 50 Vdc EMI滤波器

类型Type| 低通 Low Pass \---|--- 技术Technology| LC 通道数Number of Channels| 1 中心/截止频率Center / Cutoff Frequency| 衰减值Attenuation Value| 电阻 - 通道 ΩResistance - Channel Ohms| 电流Current| 2000mA 数值Values| C=180pF ESD 保护ESD Protection| 无 No Description & Applications| Features 1. These filters have an extended operating temperature range of -55C. to +125C. 2. Its large rated current of 2A and low voltage drop due to small DC resistance are suitable for DC power line use. 3. The feedthrough capacitor realizes excellent high frequency characteristics. 4. The structure incorporates built-in ferrite beads which minimize resonance with surrounding circuits. 5. 33 to 3300pF lineups can be used signal lines. 描述与应用| 特点 1。这些过滤器有一个扩展的操作 -55C的温度范围内。至+125°C 2。的大额定电流为2A和低电压降 由于小直流电阻适用于直流 电源线。 3。穿心电容器可实现优异的高 的频率特性。 4。内藏结构，铁氧体磁珠 它最大限度地减少与周围电路谐振。 5。 33到3300pF的阵容可以用信号线。
