NVMFD5C650NLWFT1G概述
双路场效应管, MOSFET, 双N沟道, 111 A, 60 V, 0.0035 ohm, 10 V, 2.2 V
Automotive Power MOSFET in a 5x6mm flat lead package designed for compact and efficient designs and including high thermal performance. Wettable Flank Option available for Enhanced Optical Inspection. AEC-Q101 Qualified MOSFET and PPAP capable suitable for automotive applications.
Features | | Benefits
---|---|---
| | | | |
- .
- Low on resistance
| |
- .
- Minimal conduction losses
- .
- High current capability
| |
- .
- Robust load performance
- .
- 100% avalanche tested
| |
- .
- Safeguard against voltage overstress failures
- .
- AEC-Q101 Qualified
| |
- .
- Suitable for automotive applications
NVMFD5C650NLWFT1G中文资料参数规格
技术参数
针脚数 8
漏源极电阻 0.0035 Ω
耗散功率 3.5 W
阈值电压 2.2 V
漏源极电压Vds 60 V
上升时间 24 ns
输入电容Ciss 2546pF @25VVds
下降时间 13 ns
工作温度Max 175 ℃
工作温度Min -55 ℃
耗散功率Max 3500 mW
封装参数
安装方式 Surface Mount
引脚数 8

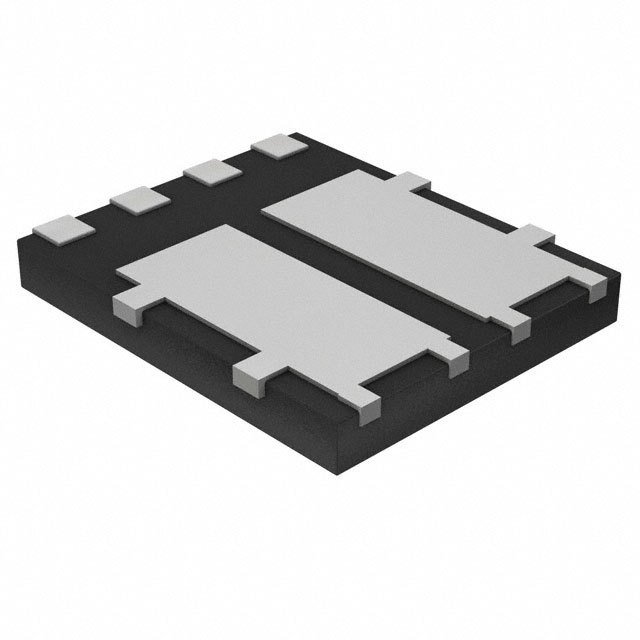

封装 DFN-8
外形尺寸
封装 DFN-8
物理参数
工作温度 -55℃ ~ 175℃ TJ
其他
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Low side / high side driver, Solenoid driver
符合标准
RoHS标准
含铅标准 Lead Free
在线购买NVMFD5C650NLWFT1G
型号： NVMFD5C650NLWFT1G
制造商：
ON Semiconductor
安森美
描述：双路场效应管, MOSFET, 双N沟道, 111 A, 60 V, 0.0035 ohm, 10 V, 2.2 V
