1 mm pin socketsSockets with tulip contacts for accepting plugs or jumpers Ø 1 ±0.05 mm. Robust and reliable. Lightly press-fitted into holes Ø 1.93 ±0.05 mm. Applications: test points, programming straps, quartz, board to board connections, etc. Technical specifications --- Materials | \- outer contact: machined brass \- internal contact: beryllium copper Coatings | \- outer contact: tin plated \- internal contact: gold-plated Current rating: | 10 A Contact resistance: | 10mΩ Mechanical service life: | 1000 cycles ### 印刷电路板附件

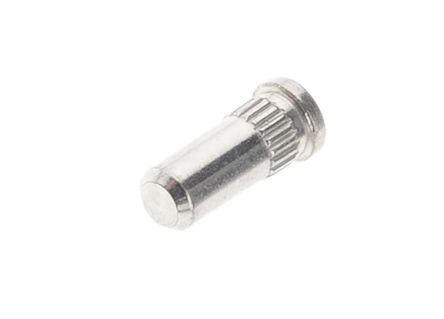

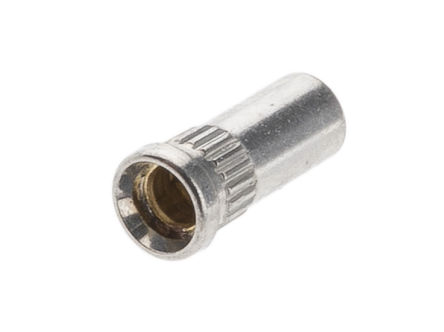

Ø1 mm pin sockets
Sockets with tulip contacts for accepting plugs or jumpers Ø 1 ±0.05 mm.
Robust and reliable.
Lightly press-fitted into holes
Ø 1.93 ±0.05 mm.
Applications: test points, programming straps, quartz, board to board connections, etc.
欧时:
HARWIN 1路 直向 压接引脚连接器 H316101, 触点
