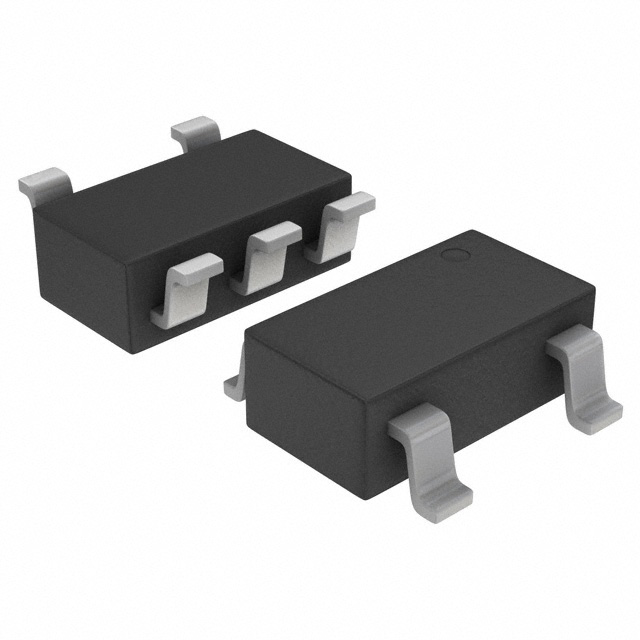

NCP302LSN47T1

电压检测器系列具有可编程延迟 Voltage Detector Series with Programmable Delay

The NCP302 and NCP303 series are second generation ultra−low current voltage detectors that contain a programmable time delay generator. These devices are specifically designed for use as reset controllers in portable microprocessor based systems where extended battery life is paramount.

Each series features a highly accurate undervoltage detector with hysteresis and an externally programmable time delay generator. This combination of features prevents erratic system reset operation. The NCP302 series consists of complementary output devices that are available with either an active high or active low reset. The NCP303 series has an open drain N−Channel output with an active low reset output.

Features

• Quiescent Current of 0.5μA Typical

• High Accuracy Undervoltage Threshold of 2.0%

• Externally Programmable Time Delay Generator

• Wide Operating Voltage Range of 0.8 V to 10 V

• Complementary or Open Drain Output

• Active Low or Active High Reset

• Specified Over the −40°C to +125°C Temperature Range

   Except for Voltage Options from 0.9 to 1.1 V

• Pb−Free Packages are Available

Typical Applications

• Microprocessor Reset Controller

• Low Battery Detection

• Power Fail Indicator

• Battery Backup Detection
