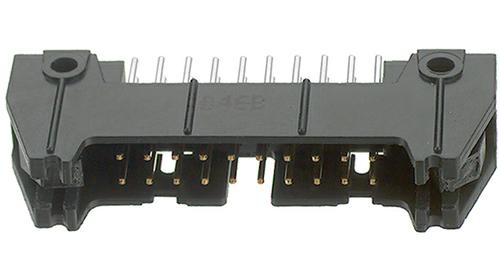

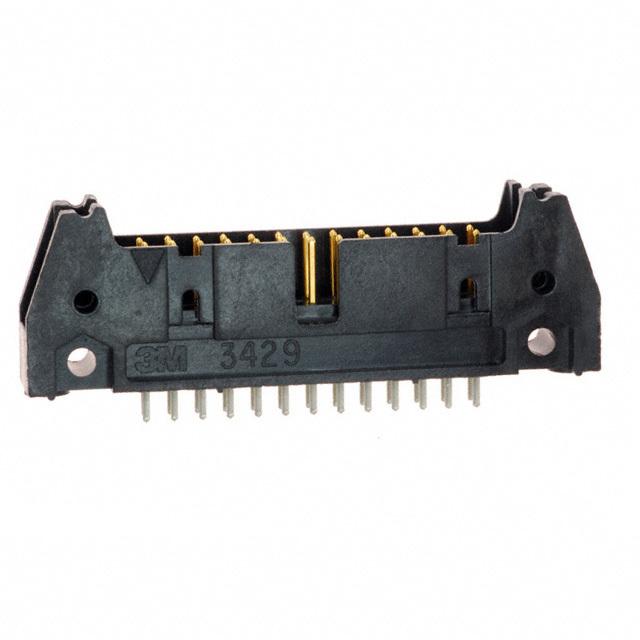

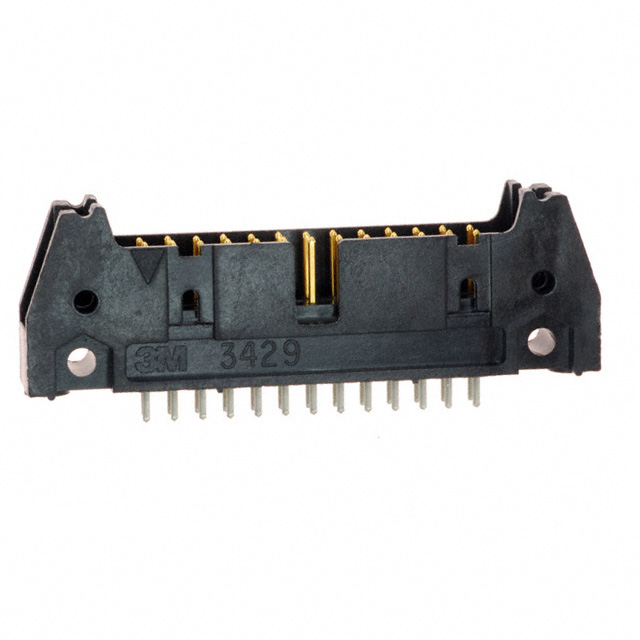

3M N3429-6002RB 四壁针座
直向转换焊接,非锁定型
得捷:
CONN HEADER VERT 26POS 2.54MM
欧时:
3M PCB 针座 3000 系列 26路 2.54mm节距 2排 直向 N3429-6002RB, 焊接端接, 2A, 通孔
贸泽:
Headers & Wire Housings BOARDMT HDR 26P NO LATCH/EJECTOR
e络盟:
线至板连接器, 2.54 mm, 26 触点, 针座, 3000 Series, 通孔安装, 2 排
艾睿:
Thanks to 3M&s;s ejector N3429-6002RB header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 26 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 2.54 mm. It has a straight body orientation. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 1.75 A. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 52.45 mm long, 17.3 mm tall and 8.6 mm deep. N3429-6002RB is housed in black polychlorinated terphenyl.
Allied Electronics:
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole
安富利:
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Thru-Hole
Verical:
Conn Ejector Header HDR 26 POS 2.54mm Solder ST Top Entry Thru-Hole Box
Newark:
# 3M N3429-6002RB Wire-To-Board Connector, 2.54 mm, 26 Contacts, Header, 3000 Series, Through Hole, 2 Rows
触点数 26
极性 Male
触点电镀 Gold
额定电流 2 A
绝缘电阻 1000 MΩ
排数 2
易燃性等级 UL 94 V-0
针脚数 26
额定电流Max 1.75 A
工作温度Max 105 ℃
工作温度Min -55 ℃
安装方式 Through Hole
引脚间距 2.54 mm
长度 52.4 mm
宽度 8.30 mm
高度 17.3 mm
引脚间距 2.54 mm
外壳颜色 Black
颜色 Black
触点材质 Copper Alloy
绝缘材质 Polyester
工作温度 -55℃ ~ 105℃
外壳材质 Polyester
产品生命周期 Active
包装方式 Box
制造应用 军用与航空, -, 国防
RoHS标准 RoHS Compliant
含铅标准 Lead Free
军工级 Yes
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
N3429-6002RB 3M | 当前型号 | 当前型号 |
N3429-600T02RB 3M | 完全替代 | N3429-6002RB和N3429-600T02RB的区别 |
N3429-620T02RB 3M | 完全替代 | N3429-6002RB和N3429-620T02RB的区别 |
3429-600T02TC 3M | 完全替代 | N3429-6002RB和3429-600T02TC的区别 |
