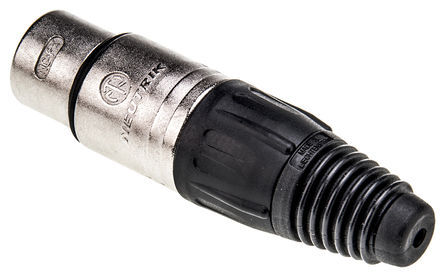

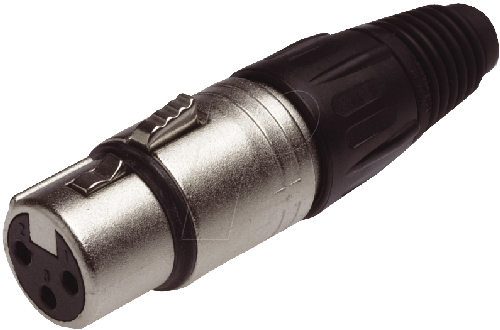

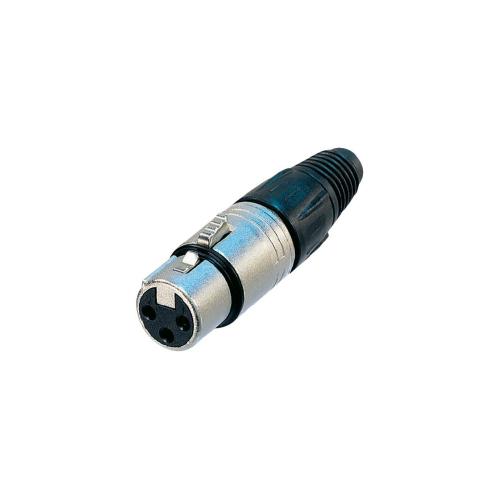

NEUTRIK NC4FX 音频连接器, XLR, 插座, 4 触点, 自由悬挂, 金属主体, 镀银触芯, X系列
X 系列 XLR 电缆托架
在方便、可重新密封的托盘上提供 XLR 连接器。
每包 25 个已拆卸的 XLR
### 注

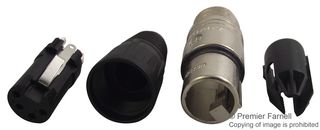

25 件未组装连接器套件。
欧时:

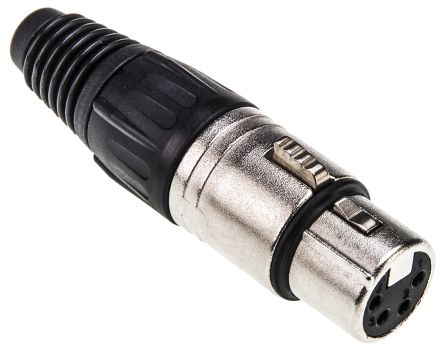

Neutrik 4路 插座 电缆安装 XLR 连接器 NC4FX, 镀银镀镍触点, 50 V
艾睿:
Conn 1/4" Phone Plug F 4 POS Solder ST Cable Mount 4 Terminal 1 Port
Allied Electronics:

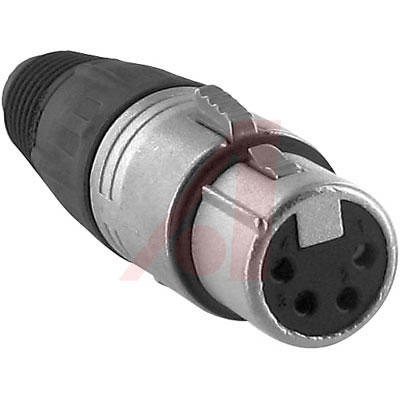

Conn; AV; XLR; Jack; 4 Cont; Cbl Mnt; Insulated; X Series; Solder; Brass Cont Mtl; 10A
TME:

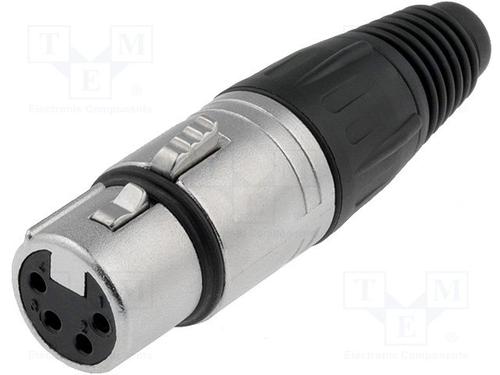

Plug; XLR; female; PIN:4; straight; for cable; soldering; 3.5÷8mm
Newark:
# NEUTRIK NC4FX XLR Audio Connector, 4 Contacts, Jack, Cable Mount, Silver Plated Contacts, Metal Body, X Series
MASTER:

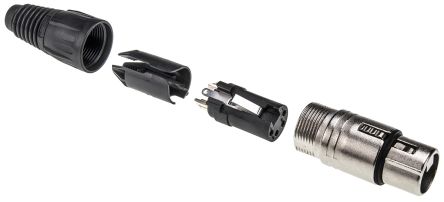

X Series - 4 pole female cable connector with Nickel housing and silver contacts. The "industry standard" XLR cable connector - easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell - fibreglass reinforced hard
Electro Sonic:
X Series - 4 pole female cable connector with Nickel housing and silver contacts. The "industry standard" XLR cable connector - easy ...
触点数 4
极性 Female
触点电镀 Silver
额定电压AC 150 V
额定电流 10 A
绝缘电阻 10000 MΩ
方向 Straight
针脚数 4
接触电阻 3 mΩ
拔插次数 1000
额定电流Max 10A/触头
工作温度Max 80 ℃
工作温度Min -30 ℃
额定电压Max 50 V
额定电压 50 V
接触电阻Max 3 mΩ
安装方式 Solder
引脚数 4
封装 Metal
封装 Metal
颜色 Nickel
触点材质 Brass
工作温度 -30℃ ~ 80℃
产品生命周期 Active
制造应用 音频, Audio, Industrial, 工业, Industrial, Audio
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
HTS代码 8536694020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
NC4FX Neutrik | 当前型号 | 当前型号 |
PSG01329 PRO Signal | 类似代替 | NC4FX和PSG01329的区别 |
A4F Switchcraft / Conxall | 功能相似 | NC4FX和A4F的区别 |
AC4F 安费诺 | 功能相似 | NC4FX和AC4F的区别 |
