ABAC0709W15

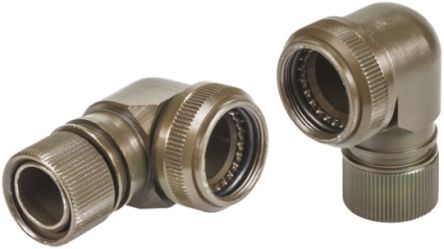

ABAC0709W15图片1
ABAC0709W15图片2
ABAC0709W15图片3
ABAC0709W15概述

AB CONNECTORS  ABAC0709W15  连接器后盖, Backshell, MIL-DTL-38999 Series III Connectors, 15, 90°, 铝主体

ABAC MIL-DTL-38999 系列 III 屏蔽槽底壳

AB 型 MIL-DTL-38999 系列 III 屏蔽槽底壳采用简洁的装配理念,通过将其固定在底壳电缆入口点(可提供连接接头)的内/外螺纹之间实现了固定屏蔽层或编织物的独特方法,无需任何其它专用工具(可提供端接单、双排或优化屏蔽),进而可包覆橡胶,以提供额外保护。 这些 Mil-DTL-38999 底壳都提供小型或大型电缆入口类型,具有机械应力消除和环境密封,配有由铝制成的镀镉接地底壳。 当与相应的 AB 型连接器 MIL-DTL-38999 系列 III 圆形连接器配合使用时,这些底壳特别适用于国防和航空应用,例如监控系统、热成像、固定翼、着陆系统和导弹系统等。

### ABAC MIL-DTL-38999 Series III

These ABAC MIL-DTL-38999 Series III connectors were developed to meet the stringent requirements of the Military, Industrial and Aerospace Industries. The Robust design of these versatile 38999 connectors is ideal for use where shock and EMI/RFI protection is required, also these MIL-DTL-38999 connectors have a quick mate threaded coupling system combined with a high performance anti-vibration mechanism. A unique feature of these connectors is a stub acme style thread on the coupling nut and receptacles to avoid the possibility of cross threading which also ease of blind mating. The EMI-RFI performance of these 38999 series III connectors is enhanced further by the built in grounding spring mechanism.

ABAC0709W15中文资料参数规格
外形尺寸

长度 39.94 mm

其他

附件类型 连接器后盖

用于 MIL-DTL-38999 Series III Connectors

连接器外壳尺寸 15

电缆出口角度 90°

连接器主体材料 铝主体

产品范围 \-

符合标准

RoHS标准 Non-Compliant

军工级 Yes

数据手册

在线购买ABAC0709W15
型号: ABAC0709W15
制造商: AB Connectors
描述:AB CONNECTORS  ABAC0709W15  连接器后盖, Backshell, MIL-DTL-38999 Series III Connectors, 15, 90°, 铝主体
