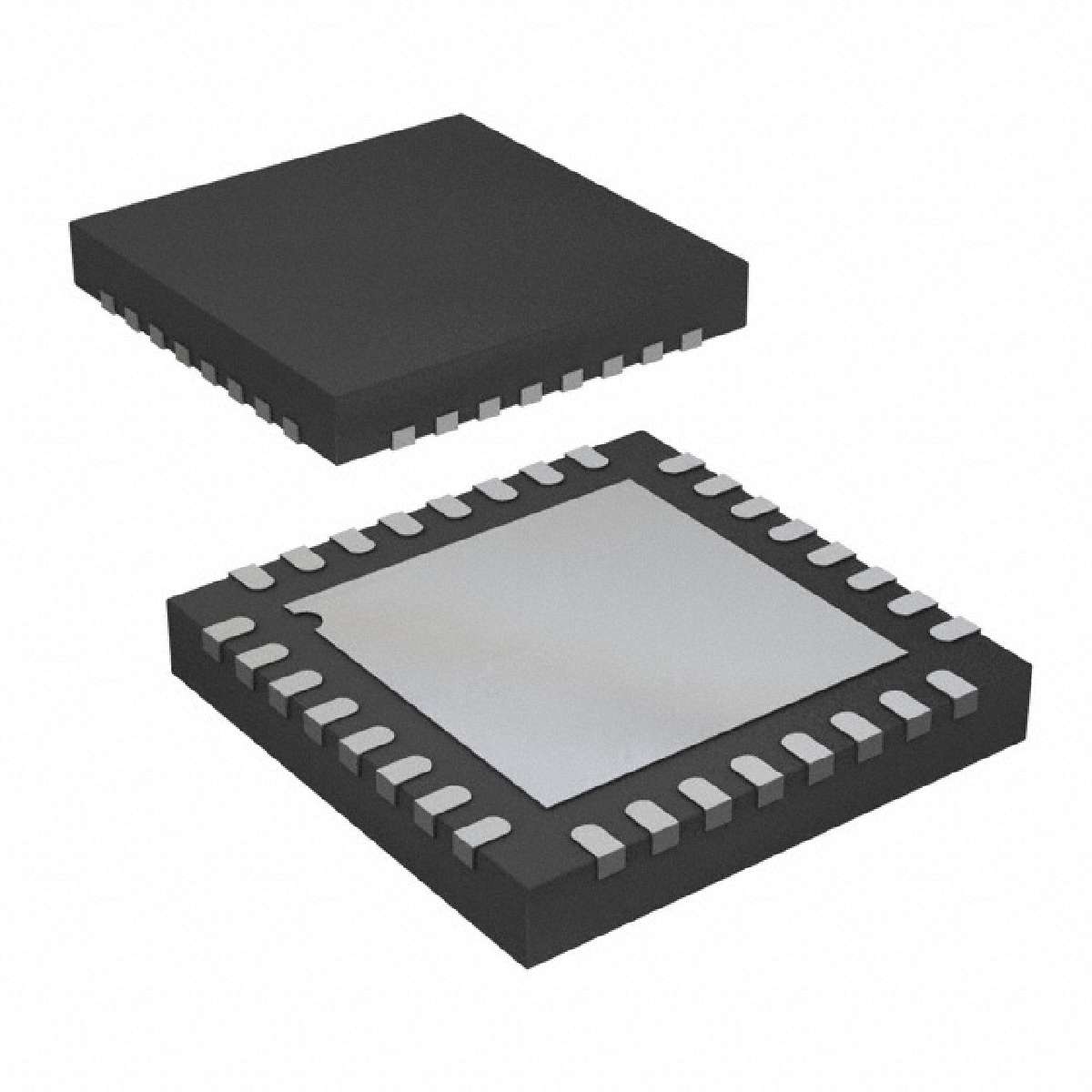

ANALOG DEVICES ADRF6518ACPZ-R7 芯片, 可编程滤波器与可变增益放大器, LFCSP-32
RF IC 可编程滤波器,VGA 通用 0Hz ~ 1.1GHz - 32-LFCSP-WQ(5x5)
得捷:
IC AMP VGA 300MHZ DUAL 32LFCSP
立创商城:
ADRF6518ACPZ-R7
e络盟:
芯片, 可编程滤波器与可变增益放大器, LFCSP-32
艾睿:
Using the hardware and software tools in this ADRF6518ACPZ-R7 OP amp circuits from Analog Devices you will be able to evaluate, characterize, test and qualify the amplifier in different conditions and configurations. Look no further than the ADRF6518ACPZ-R7 preamplifier from Analog Devices, a component that is designed to get the most out of a signal. This part has a temperature range of -40 °C to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components.
安富利:
Programmable Filters and Variable Gain Amplifiers 32-Pin LFCSP T/R
Verical:
Programmable Filters and Variable Gain Amplifiers 32-Pin LFCSP EP T/R
Newark:
# ANALOG DEVICES ADRF6518ACPZ-R7 Programmable/Variable Amplifier, 2 Channels, 2 Amplifier, 1.1 GHz, -40 °C, 85 °C, 3.15V to 3.45V
Win Source:
IC AMP VGA 300MHZ DUAL 32LFCSP
频率 0Hz ~ 1.1GHz
供电电流 400 mA
通道数 2
针脚数 32
耗散功率 1.25 W
带宽 1.1 GHz
增益 72 dB
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 350 MHz
耗散功率Max 1250 mW
电源电压 3.15V ~ 3.45V
安装方式 Surface Mount
引脚数 32

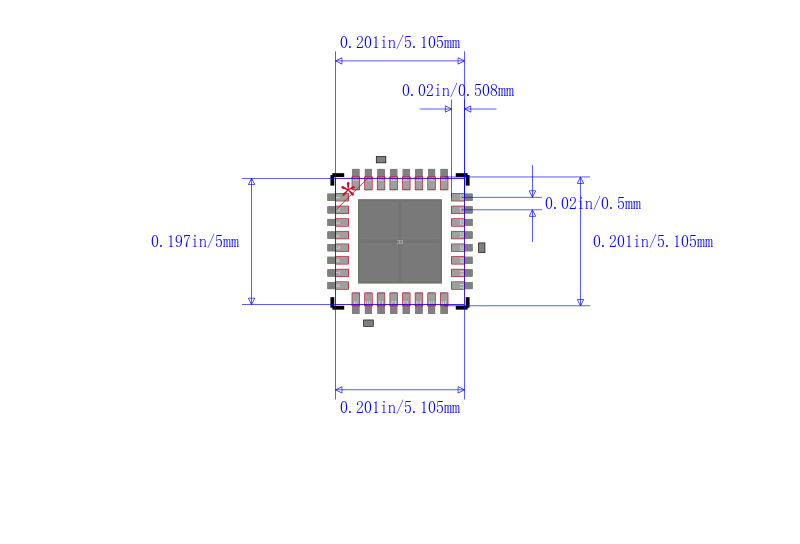

封装 LFCSP-32
封装 LFCSP-32
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
