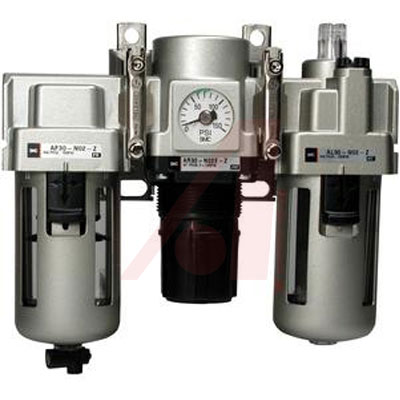

AC40、50 系列 FRL 装置 AC 系列模块化类型 F.R.L 装置提供各种组合，以适合您的需求。各种选项确保最佳性能，提供节能和更高流率。 易于装配和维护。 过滤器组件
The cost effective and clean looking AC series allows you to pick a combination of modular style air preparation equipment that best suits your needs. The series, available in 8 size options to ensure optimum performance, offers energy savings, with higher flow rates. Simple assembly and maintenance reduces downtime. The exhaust port for auto drain comes with 3⁄8" One-Touch fitting applicable to AC25 to 60. Applicable tube O.D. for auto drain connection should be 3⁄8" for NPT port sizes. Name plate, caution plate for bowl and pressure gauge in imperial units PSI, °F.
**Features:**
* Easy to Install/Maintain Modular Design
* Efficient High Flow Design with 5 Micron Particle Filtration Standard
* High Capacity Bowls with Autodrain Standard
* Four Sizes with Port Sizes from 10-32 UNF Nominal to 1⁄2" NPT
* Operating Pressure: 150 PSI Regulator Adjustment Range: 7 to 125 PSI
* Built-In Gauge
* Wide Variety of Modular Accessories Available
* Port Sizes up to 11⁄2" NPT Available Upon Request
* Energy Saving with Higher Flow Rate
* Cleaner Environment with small Micron Filtration
* Reduced Downtime with Simple Assembly and Maintenance
高度 187 mm
Body Size 40
Brand/Series AC Series
Height 187 mm
Length, Overall 220 mm
Material, Bowl Polycarbonate
Port Size, Gauge 1/4 in.
Pressure, Operating 1.0 MPa Max.
Proof Pressure 1.5
Set Pressure 0.05 to 0.85
Size, Port 1⁄4, 3⁄8, 1⁄2 "
Temperature, Ambient -5 to 60 °C
Thread Type NPT
RoHS标准 RoHS Compliant
