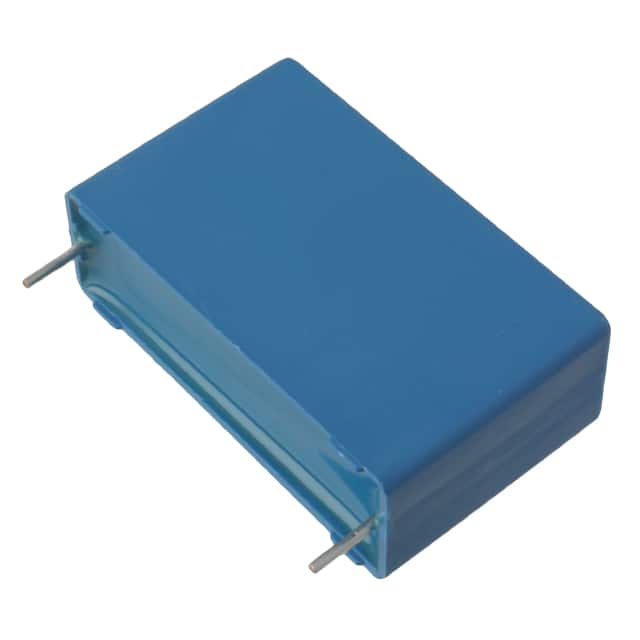

B32672Z4684K000图片1
B32672Z4684K000图片2
B32672Z4684K000图片3
B32672Z4684K000图片4
B32672Z4684K000图片5
B32672Z4684K000概述

EPCOS  B32672Z4684K000  膜电容, B32672Z系列, 0.68 µF, ± 10%, PP聚丙烯, 450 V

The B32672Z series Film Capacitor with lead-free tin-plated parallel wire lead terminals. It has metallised polypropylene PP dielectric, plastic case and flame-retardant epoxy resin sealing. It is suitable for PFC Power Factor Correction.

.
Wound capacitor technology
.
High frequency capability
.
Very small dimensions
.
Halogen-free
.
UL94V-0 Flammability rating

Do not exceed the upper category temperature UCT. Do not apply any mechanical stress to the capacitor terminals. Avoid any compressive, tensile or flexural stress.

B32672Z4684K000中文资料参数规格
技术参数

额定电压DC 450 V

电容 0.68 µF

容差 ±10 %

工作温度Max 125 ℃

额定电压 450 V

封装参数

安装方式 Radial

封装 -

引脚间距 15 mm

外形尺寸

封装 -

引脚间距 15 mm

物理参数

介质材料 Polypropylene

其他

产品生命周期 Active

包装方式 Each

制造应用 Power Management, 电源管理

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/06/15

数据手册

在线购买B32672Z4684K000
型号: B32672Z4684K000
制造商: Epcos 爱普科斯
描述:EPCOS  B32672Z4684K000  膜电容, B32672Z系列, 0.68 µF, ± 10%, PP聚丙烯, 450 V
