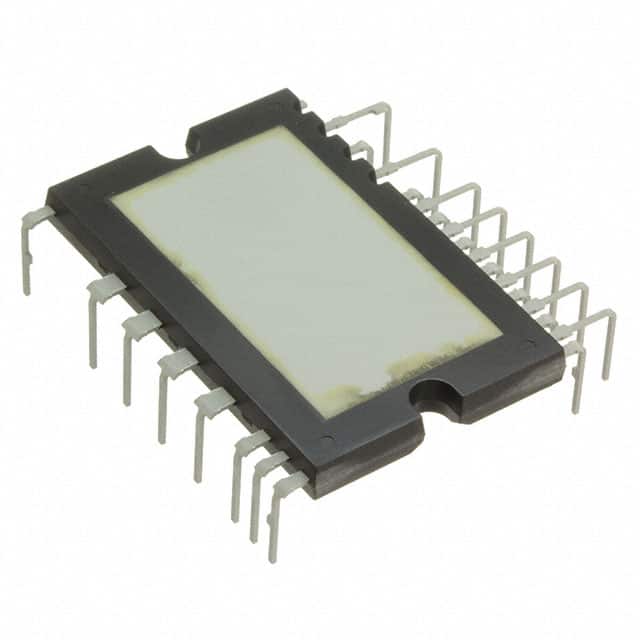

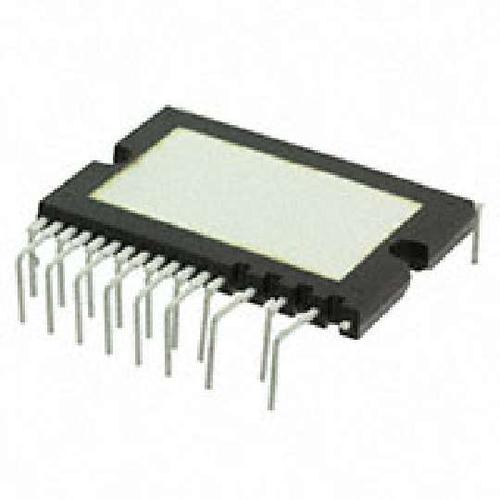

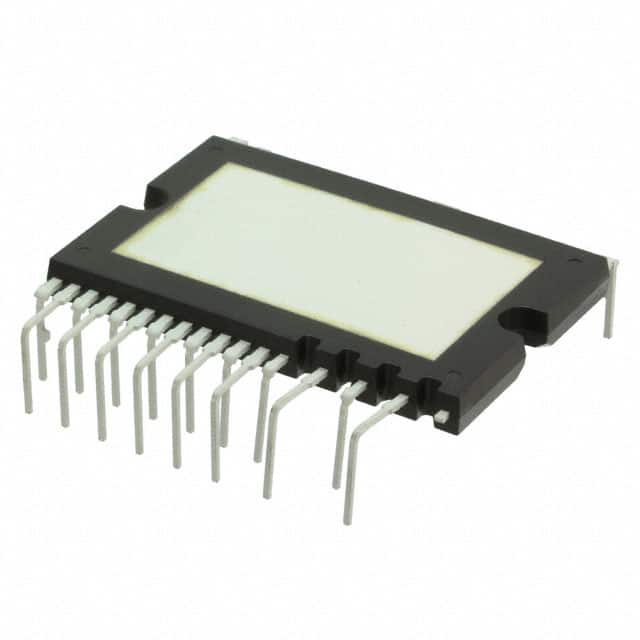

ROHM BM63764S-VC 智能功率模块 IPM, IGBT, 600 V, 15 A, 1.5 kV, SDIP, DIPIPM 新
The is a 600V/15A IGBT Intelligent Power Module IPM for high speed switching drive in 25 pin HSDIP package. It is composed of gate drivers, bootstrap diodes, IGBTs, fly wheel diodes. Small switching loss IGBTs optimized for high speed switching drive such as a washing machine or a fan motor is adopted. The high side IGBT gate driver HVIC features SOI Silicon On Insulator process, drive circuit, high voltage level shifting, current limit for bootstrap diode, control supply under-voltage locked out UVLO, low side IGBT gate driver LVIC features drive circuit, short circuit current protection SCP, control supply under voltage locked out UVLO, thermal shutdown TSD and fault signal LVIC corresponding to SCP low side IGBT, TSD, UVLO fault. Typical application include high speed switching drive of AC100 to 240Vrms DC voltage less than 400V class motor, high speed switching drive of motor.
- .
- IGBT collector-emitter voltage VCESAT is 1.7V
- .
- FWD forward voltage VF is 1.5V typ
- .
- FWD reverse recovery time trr is 100ns typ
- .
- Operating temperature range from-25°C to +100°C
- .
- 3phase DC/AC inverter
- .
- Low side IGBT open emitter
- .
- Built-in bootstrap diode
- .
- Input interface 3.3V, 5V line
ESD sensitive device, take proper precaution while handling the device.
The residue of flux may negatively affect product performance and reliability when highly active halogenous chlorine, bromine flux is used.
