BA6664FM-E2

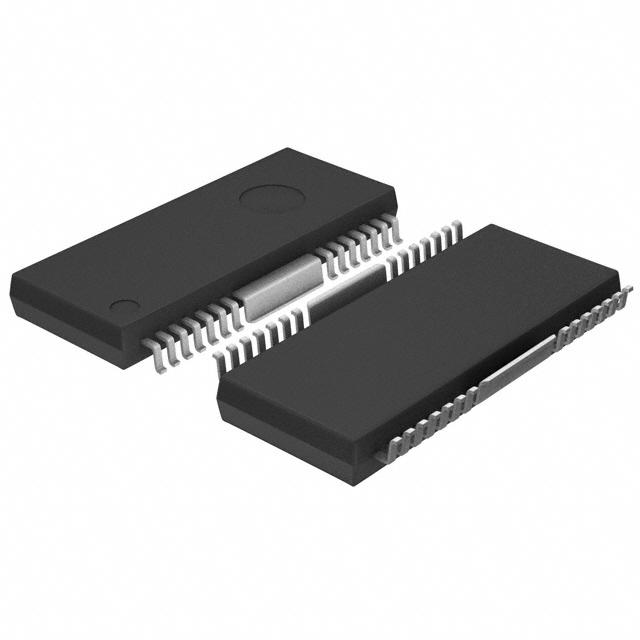

BA6664FM-E2图片1

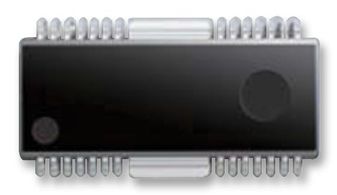

BA6664FM-E2图片2
BA6664FM-E2图片3
BA6664FM-E2图片4
BA6664FM-E2图片5
BA6664FM-E2概述

马达/运动/点火控制器和驱动器 SPINDLE MOTOR DRVR 1 PHASE 30PIN

System Motor Driver ICs for CD/DVD Players

● Description

ROHM’s spindle motor drivers incorporate the 3-phase full-wave pseudo-linear drive systemBA6859AFP-Y, BA6664FM and 180 ° electrifying direct PWM drive systemBD6671FM.Smooth rotation characteristic performance is ensured.

Besides, high torque is provided in a wide output range because the output stage incorporates low-saturation voltage NPN transistors BA6859AFP-Y, BA6664FM and low-power consumption MOSFET BA6671FM.

● Features

1 3-phase full-wave pseudo-linear system BA6859AFP-Y, BA6664FM

2 180° electrifying direct drive PWM system BD6671FM

3 Power saving, TSD thermal shutdown functions built in

4 Current limiting, Hall bias circuit built in

5 FG output built in

6 3-phase component FG output built in BA6664FM, BD6671FM

7 Circuit direction detection function built in BA6859AFP-Y, BA6664FM

8 Reverse rotation prevention circuit built in

9 Short brake pin built in BA6859AFP-Y, BA6664FM

10 Brake mode selection pin built in BA6859AFP-Y, BD6671FM

11 Supports DSP 3.3 V

● Applications

  Used for car, CD and DVD players incorporating changer function

BA6664FM-E2中文资料参数规格
技术参数

输出接口数 1

输出电流 840 mA

耗散功率 2.2 W

工作温度Max 85 ℃

工作温度Min -40 ℃

耗散功率Max 2200 mW

电源电压 4.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 30

封装 SOP-28

外形尺寸

封装 SOP-28

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 媒体播放器

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买BA6664FM-E2
型号: BA6664FM-E2
制造商: ROHM Semiconductor 罗姆半导体
描述:马达/运动/点火控制器和驱动器 SPINDLE MOTOR DRVR 1 PHASE 30PIN
