BCKS1002

LORLIN  BCKS1002  旋转开关, 不发光, 22.5 °, 150 mA, 150 mA, 50 V

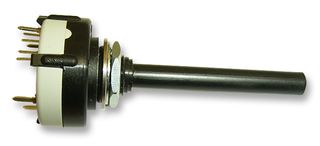

The is a binary coded Rotary Switch with adjustable stop to restrict number of positions or continuous rotation. Brass alloy contacts with silver plated terminals. >10000 Cycles lifetime, >999M at 500VDC initial insulation resistance, <50m initial contact resistance, standard 4.7±0.5cNm nominal operating torque and 0.8Nm nominal end stop torque.

.

Panel sealed IP65 rating

.

Standard 22.5° indexing

.

Binary coded Hexadecimal and complimentary versions
