Conv DC-DC 7V to 42V Step Down Single-Out 1V to 29.4V 1.5A 8Pin HTSOP-J EP T/R
* Internal 200 mΩ Nch MOSFET * Output Current 1.5A * Oscillation Frequency 300kHz * Synchronizes to External Clock 200kHz~ 500kHz * Feedback Voltage 1.0V±1.0% * Internal Soft Start Function * Internal Over Current Protect Circuit, Low Input Error Prevention Circuit, Heat Protect Circuit * ON/OFF Control through EN Pin Standby Current 0 A Typ. * Package: HTSOP-J8 Package
立创商城:
BD9673AEFJ-E2
得捷:
IC REG BUCK ADJ 1.5A 8HTSOP-J
贸泽:
ROHM Semiconductor Flexible Step-down Switching Regulators with Built-in Power MOSFET. Gold Wire
艾睿:
Conv DC-DC 7V to 42V Step Down Single-Out 1V to 29.4V 1.5A 8-Pin HTSOP-J EP T/R
安富利:
Conv DC-DC Single Step Down 7V 42V 8-Pin HTSOP-J T/R
输出接口数 1
输出电压 1V ~ 29.4V
输出电流 1.5 A
开关频率 300 kHz
输入电压Max 42 V
输入电压Min 7 V
输出电压Max 29.4 V
输出电压Min 1 V
输出电流Max 1.5 A
工作温度Max 105 ℃
工作温度Min -40 ℃
输入电压 7V ~ 42V
安装方式 Surface Mount
引脚数 8

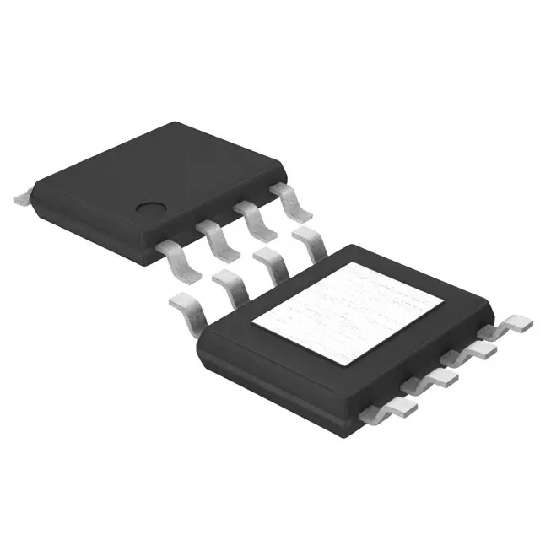

封装 HTSOP-8
封装 HTSOP-8
工作温度 -40℃ ~ 105℃ TA
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
