EPCOS B82498B1332J 表面贴装高频电感器, B82498B系列, 3.3 µH, ± 5%, 0805 [2012 公制], 200 MHz, 3.3 ohm

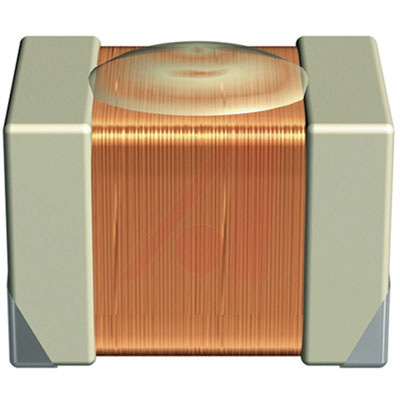

The is a surface mount High Frequency Inductor features cubic coil with ceramic or ferrite core. This B82498B inductor comes with partially plastic-sealed windings, winding ends welded to terminals. This Inductor"s terminals are made of Al2O3 ceramic or ferrite base and thick-film coating of Ag/Pd/Pt termination. Supports 200MHz resonance frequency and ±5% of inductance tolerance. It is suitable for reflow soldering.
- .
- High Q factor
- .
- High resonance frequency
- .
- Close inductance tolerance
额定电流 100 mA
电感 3.3 µH
自谐频率 200 MHz
Q值 20.0
电阻 3.30 Ω
共振频率 200 MHz
电感公差 ±5 %
额定电流DC 100 mA
电阻DC Max 3.3 Ω
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
封装公制 2012
封装 0805
包装方式 Cut Tape CT
制造应用 Wireless, 通信与网络, 多媒体, Communications & Networking, Multimedia, 无线
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
