EPCOS B82111EC21 轴向引线高频电感器, VHF扼流, B82111E系列, 12 µH, ± 20%, 0.04 ohm, 4 A, 140 MHz

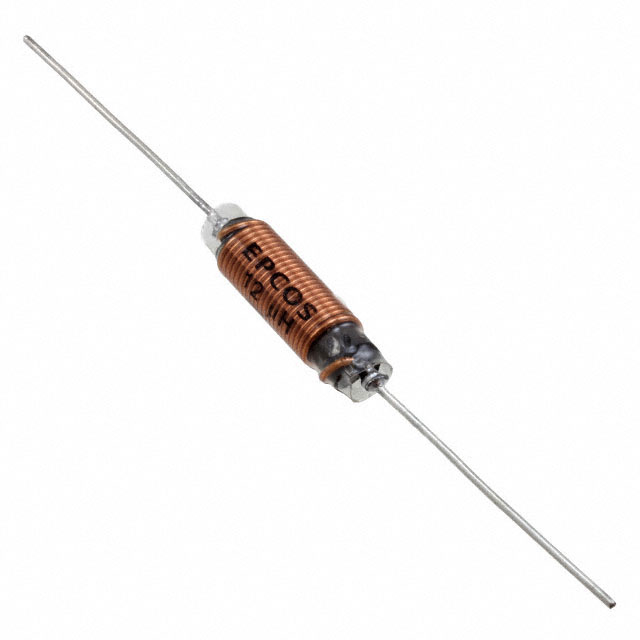

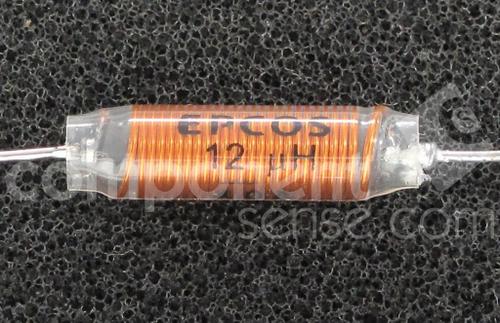

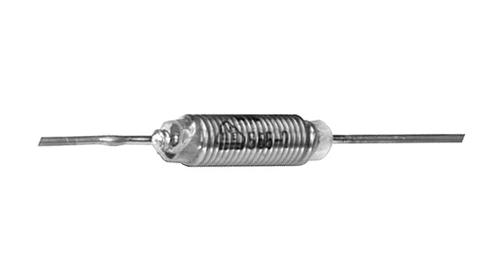

The is an axial leaded High Frequency Inductor with ferrite cylinder core. This VHF choke is constructed as single-layer, enamel copper wire windings and polyester insulating sleeve. This inductor"s terminals are made of central axial leads, copper base and hot-dip tinned with pure tin terminations. Supports ±20% of inductance tolerance and is suitable for wave soldering.
- .
- High resonant frequency
- .
- Wide inductance range
- .
- Complies with EN60938 standard
额定电压AC 500 V
额定电流 4 A
容差 ±20 %
电感 12 µH
自谐频率 140 MHz
电阻 40.0 mΩ
共振频率 140 MHz
电感公差 ±20 %
测试频率 100 KHz
电阻DC） 40 mΩ
额定电流DC 4 A
电阻DC Max 0.04 Ω
安装方式 Through Hole
引脚数 2
封装 Axial
高度 26.0 mm
封装 Axial
工作温度 -55℃ ~ 125℃
包装方式 Tape & Reel TR
制造应用 Communications & Networking, RF Communications
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
