BSW-104-04-T-S

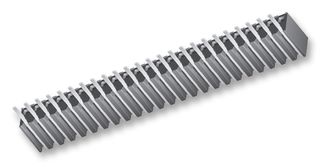

BSW-104-04-T-S图片1
BSW-104-04-T-S图片2
BSW-104-04-T-S图片3
BSW-104-04-T-S图片4
BSW-104-04-T-S图片5
BSW-104-04-T-S概述

板对板与夹层连接器 .100" Bottom Entry Socket Strip

4 位置 插座,分离式 通孔,底部安装


得捷:
CONN RCPT 4POS 0.1 TIN PCB


欧时:
.100" BSW Socket 4 P Bottom Entry


贸泽:
板对板与夹层连接器 .100" Bottom Entry Socket Strip


艾睿:
Protect your printed circuit boards from accidental damages with Samtec&s;s bottom mount socket strip BSW-104-04-T-S header connector. This SKT connector&s;s 4 contacts that are made out of phosphor bronze and plated with tin over nickel. This is a 1-row connector. Its pitch is 2.54 mm. It has a straight body orientation. It has a socket type gender. This device has a maximum current rating of 3 A. This product comes packaged in bulk, so the parts will be stored loosely. BSW-104-04-T-S is housed in black thermoplastic. It uses the solder termination method. This connector has an operating temperature of -55 to 105 °C. This product is 10.67 mm long, 8.89 mm tall and 5.08 mm deep.


安富利:
Conn Bottom Mount Socket Strip SKT 4 POS 2.54mm Solder ST Thru-Hole


Verical:
Conn Bottom Mount Socket Strip SKT 4 POS 2.54mm Solder ST Bottom Entry Thru-Hole Bulk


Newark:
# SAMTEC  BSW-104-04-T-S  Board-To-Board Connector, 2.54 mm, 4 Contacts, Receptacle, BSW Series, Solder, 1 Rows


BSW-104-04-T-S中文资料参数规格
技术参数

触点数 4

极性 Female

触点电镀 Tin

绝缘电阻 5000 MΩ

排数 1

针脚数 4

额定电流Max 3 A

工作温度Max 105 ℃

工作温度Min -55 ℃

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

高度 8.89 mm

物理参数

外壳颜色 Black

触点材质 Phosphor Bronze

工作温度 -55℃ ~ 105℃

其他

产品生命周期 Active

包装方式 Bulk

制造应用 -, Industrial

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

REACH SVHC版本 2015/06/15
