B&K PRECISION BK9132B POWER SUPPLY, 3-CH, 60V, 3A, PROG 新

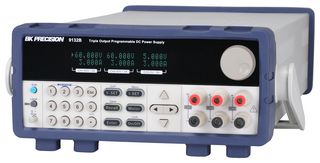

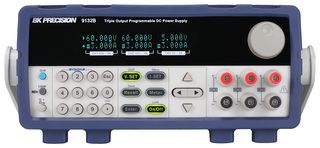

The from B&K Precision is a programmable triple output linear DC power supply. The isolated outputs can be adjusted independently or combined in series or parallel to output higher voltage or current. This supply can operate in tracking mode with user configurable ratios between channels. The front panel keys and rotary knob with convenient cursors let users quickly set voltage and current values. Up to 36 different instrument settings can be saved and recalled. The power-on state of outputs can also be configured. For remote control, standard USB, RS232 and GPIB interfaces supporting SCPI commands can be used to remotely control power supplies via a PC. Alternatively, users can control power supply, execute test sequences or log measurements using provided PC software application. This software also integrates with data dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators.
- .
- 0V to 60V ch1 & ch2/0V to 5V ch3 output voltage and 0A to 3A ch1, ch2 & ch3 output current
- .
- Output power of 375W and programming resolution of 1mV voltage, 1mA current
- .
- Displays voltage and current settings for all three channels simultaneously
- .
- Three independent and electrically isolated outputs, low noise, linear regulation
- .
- 110VAC/220VAC ±10%, 47Hz to 63Hz AC input
- .
- Tracking mode allows users to set up channels to maintain a programmed ratio
- .
- Fully programmable channels with output on/off control, operating temperature range from 0°C to 40°C
- .
- Overvoltage OVP and overtemperature OTP protection including keylock function
- .
- Compact 19" half rack form factor allows for side by side rack mounting of two units
- .
- Dimension is 214.5mm x 88.2mm x 445mm and weight is 15Kg
