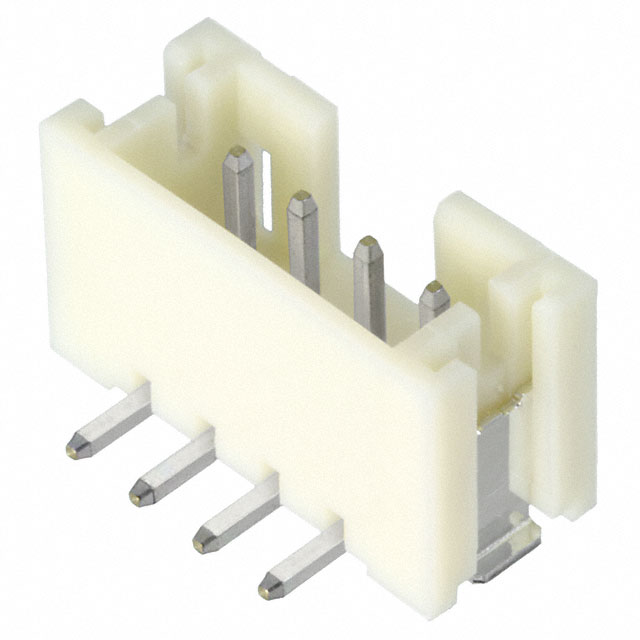

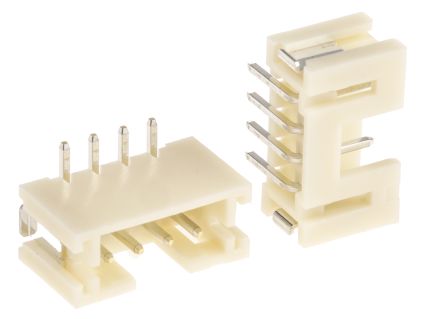

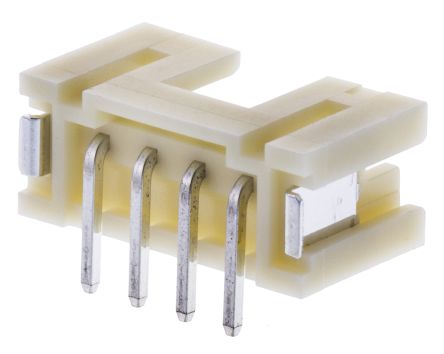

B4B-PH-SM4-TBLFSN

JST JAPAN SOLDERLESS TERMINALS  B4B-PH-SM4-TBLFSN  线至板连接器, 垂直, PH系列, 4 触点, 针座, 2 mm, 压接, 1 排

Board Connector PH Series Surface Mount Header, Low Insertion Force Top Entry

The PH Connectors are designed to meet the demand for high density connection of internal wires to printed circuit boards. It is compact, highly reliable and low in cost.

.

*Features & Benefits**

• Reliable contact

• Fully shrouded header

• Current rating of 2A

• Printed circuit board retention mechanism

• Surface mount model

• Voltage rating of 100 V ac

• Temperature range from -25°C to 85°C

• Wire size of 32 AWG to 24 AWG

• Number of contacts varies from 2 to 16 pins

• Contact material is brass

• Tin plated contact

• UL, CSA and TUV certified

### 2.0mm 线对板，JST PH 系列
