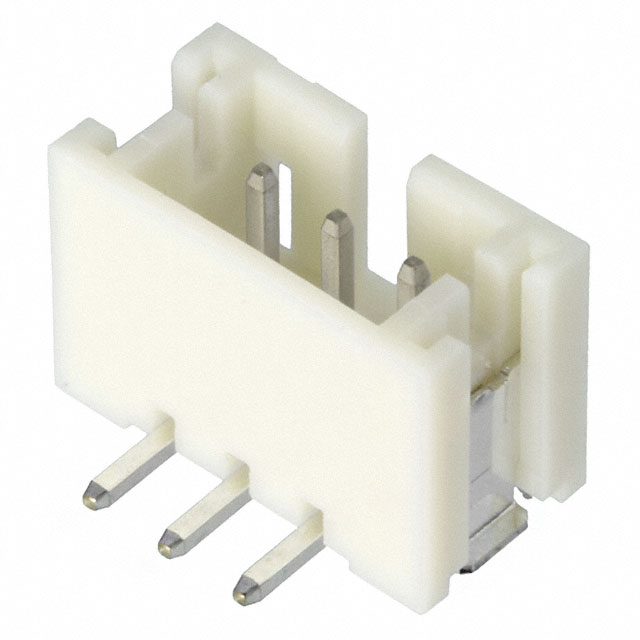

B3B-PH-SM4-TBTLFSN

PH 系列 3 位置 2 mm 间距 压接 表面贴装 顶部装入 有护套 插头

Connector Header Surface Mount 3 position 0.079" 2.00mm

得捷:
CONN HEADER SMD 3POS 2MM

立创商城:
PH 2mm 1x3P

艾睿:

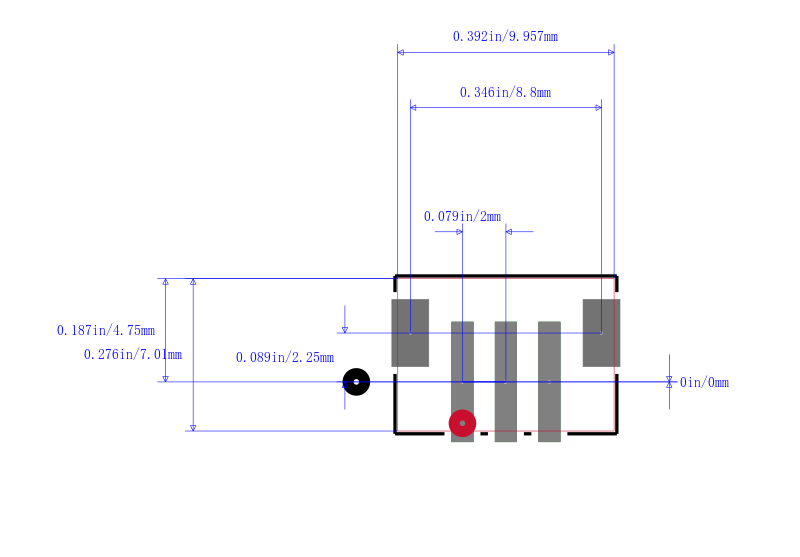

Use this shrouded B3B-PH-SM4-TBT LFSN header connector from JST Corporation where IDC ribbon cables are used. This HDR connector&s;s 3 contacts that are made out of copper alloy and plated with tin over copper. Its pitch is 2 mm. It has a header type gender. This is a 1-row connector. It has a straight body orientation. It has a maximum voltage rating of 100 VDC|100VAC. This device has a maximum current rating of 2 A. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. B3B-PH-SM4-TBT LFSN is housed in ivory polyamide. This connector has an operating temperature of -25 to 85 °C. This product is 9.95 mm long, 6.6 mm tall and 7 mm deep. It uses the solder termination method.

Verical:
Conn Shrouded Header HDR 3 POS 2mm Solder ST SMD T/R

CDI:
ShroudedHeader, SM, Top Entry, 3Circuit, 2.0mmPitch
