智能低侧功率开关 Smart Low Side Power Switch
Description:

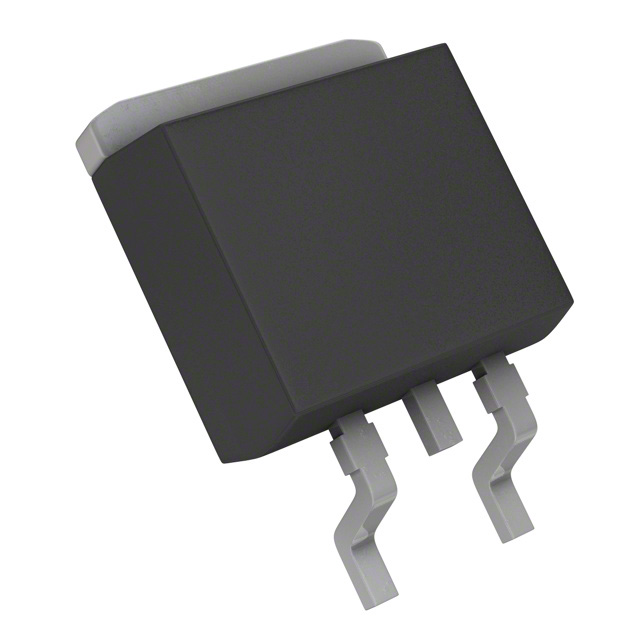

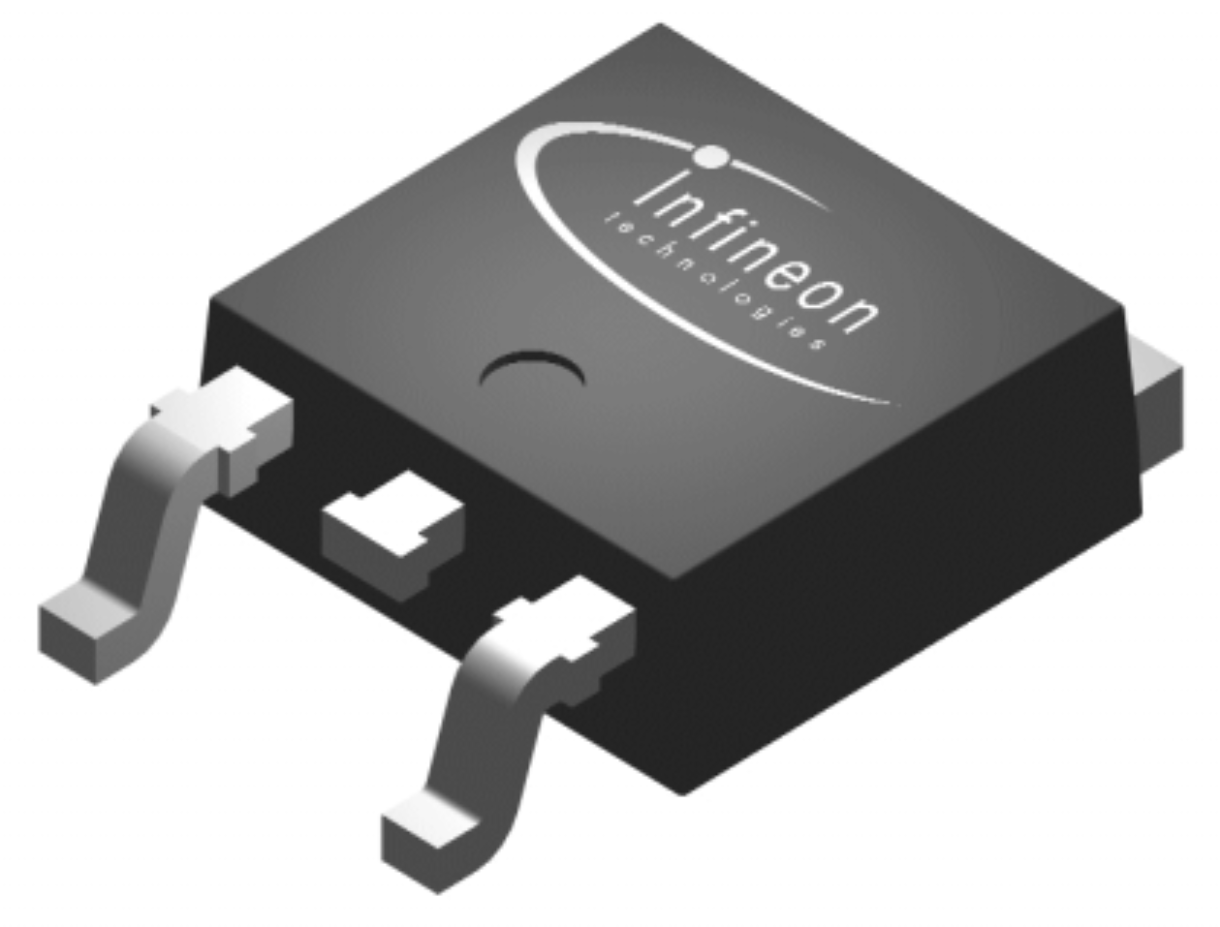

The is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions. The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3104SDR is automotive qualified and can be used in 12V and 24V automotive and industrial applications.The BTS3104SDR is a single channel low-side MOSFET power switch in PG-T0252-3-11 package providing embedded protective functions. The device is monolithically integrated with a N channel vertical power FET and embedded protection functions. The BTS3104SDR is automotive qualified and can be used in 12V and 24V automotive and industrial applications.
Summary of Features:
- .
- Short circuit and over load protection
- .
- Thermal shutdown with latch behavior
- .
- ESD protection
- .
- Over voltage protection
- .
- Logic level input suitable for 5V and 3.3V
- .
- Analog driving possible
- .
- 12V and 24V usability
- .
- Green Product RoHS compliant
- .
- AEC Qualified
