B59870C0080A070

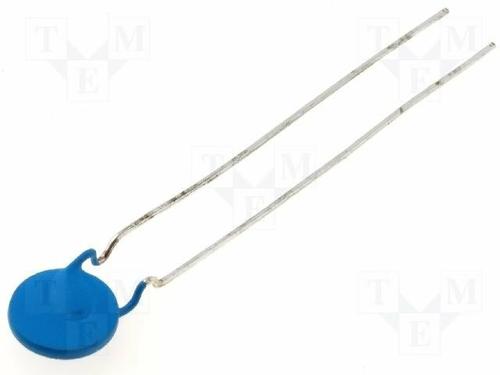

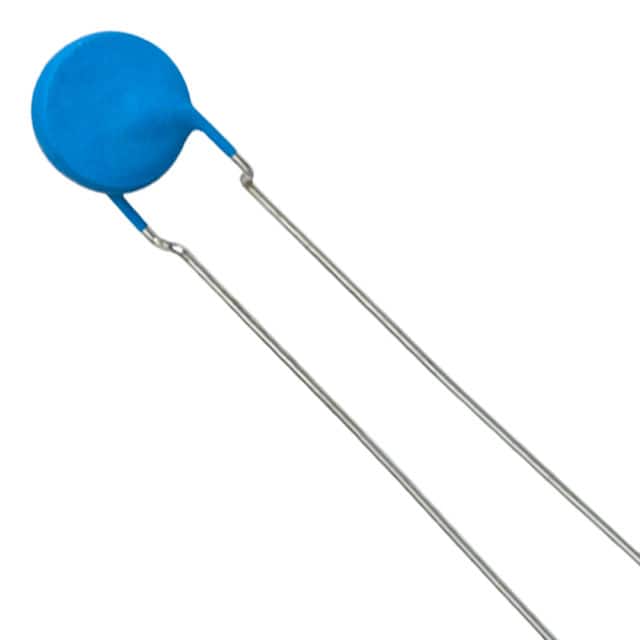

B59870C0080A070图片1
B59870C0080A070图片2
B59870C0080A070图片3
B59870C0080A070图片4
B59870C0080A070图片5
B59870C0080A070概述

PTC热敏电阻器的过流保护 PTC thermistors for overcurrent protection

Ceramic PTC Resettable Fuse 265V 60mA Ih Through Hole Radial, Disc


欧时:
Type C870 PTC thermistor,25ohm 80degC


得捷:
PTC RESET FUSE 265V 60MA RADIAL


贸泽:
PTC热敏电阻 PTC Thermistor C 870-A 80-A 70 8X2,5


e络盟:
PTC热敏电阻, 25欧姆, 通孔, 265 V, C870系列


Chip1Stop:
Thermistor PTC 25 Ohm 25% 2-Pin Radial Cardboard Strip


TME:
Fuse: PTC thermistor; ceramic; 60mA; 230V; Pitch:5mm; 6s


Verical:
Thermistor PTC 25 Ohm 25% 2-Pin Radial Strip


B59870C0080A070中文资料参数规格
技术参数

额定电流 60 mA

容差 25 %

电阻 25 Ω

跳闸电流 130 mA

保持电流Max 60 mA

工作温度Max 125 ℃

工作温度Min -40 ℃

工作电压Max 265 V

封装参数

安装方式 Through Hole

引脚数 2

封装 Radial, Disc

外形尺寸

长度 9 mm

宽度 5 mm

高度 12.5 mm

封装 Radial, Disc

厚度 5 mm

物理参数

工作温度 -25℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买B59870C0080A070
型号: B59870C0080A070
制造商: Epcos 爱普科斯
描述:PTC热敏电阻器的过流保护 PTC thermistors for overcurrent protection
