1210 100nF ±20% 630V X7T
0.1 µF ±20% 630V 陶瓷器 X7T 1210（3225 公制）
得捷:
CAP CER 0.1UF 630V X7T 1210
立创商城:
100nF ±20% 630V
艾睿:

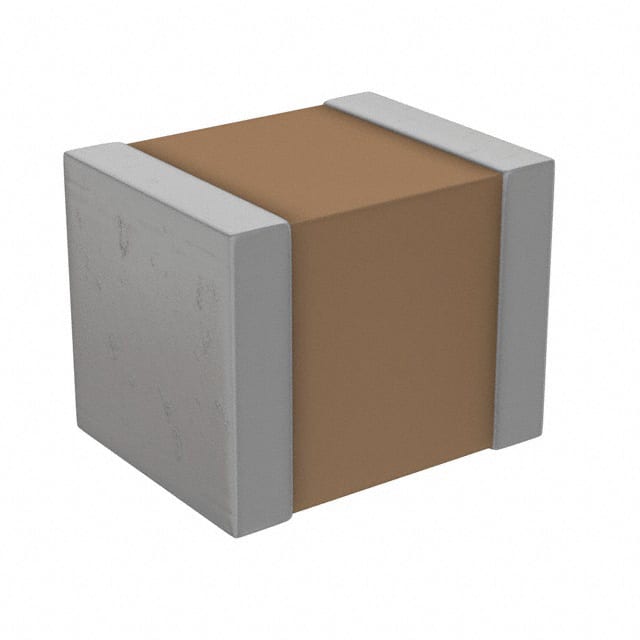

You can&s;t go wrong with this CGA6L1X7T2J104M160AC multilayer ceramic capacitor from TDK, it is the most commonly used type of capacitor for multiple applications! It can withstand a voltage of 630 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.2 mm long, 1.6 mm tall and 2.5 mm deep. It has a tolerance of 20%. Its capacitance value is 0.1uF.
安富利:
Cap Ceramic 0.1uF 630V X7T 20% SMD 1210 125°C Blister Plastic T/R
Verical:
Cap Ceramic 0.1uF 630V X7T 20% Pad SMD 1210 125C Automotive T/R
额定电压DC 630 V
电容 0.1 µF
容差 ±20 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 630 V
安装方式 Surface Mount
封装公制 3225
封装 1210

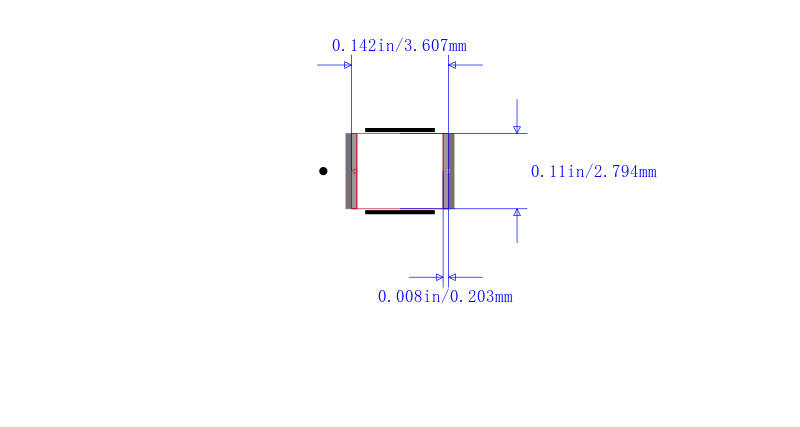

长度 3.2 mm
宽度 2.5 mm
高度 1.6 mm
封装公制 3225
封装 1210
材质 X7T/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 2000
制造应用 汽车级, Automotive Grade
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
CGA6L1X7T2J104M160AC TDK 东电化 | 当前型号 | 当前型号 |
CGA6L1X7T2J104M160AE 东电化 | 完全替代 | CGA6L1X7T2J104M160AC和CGA6L1X7T2J104M160AE的区别 |
C3225X7T2J104M160AE 东电化 | 完全替代 | CGA6L1X7T2J104M160AC和C3225X7T2J104M160AE的区别 |
CGA6L1X7T2J104K160AC 东电化 | 类似代替 | CGA6L1X7T2J104M160AC和CGA6L1X7T2J104K160AC的区别 |
