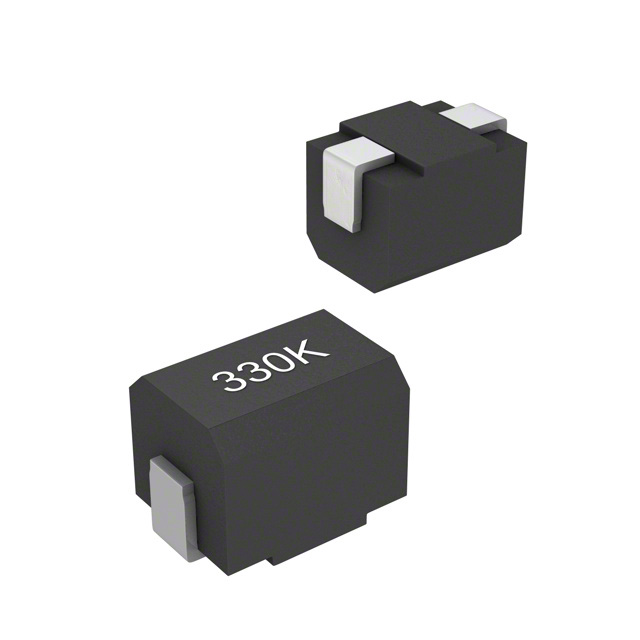

CC453232-6R8KL

绕线片式电感 Wirewound Chip Inductor

6.8µH Unshielded Inductor 600mA 350mOhm Max 1812 4532 Metric

得捷:
FIXED IND 6.8UH 600MA 350MOHM SM

立创商城:
6.8uH ±10% 600mA 350mΩ

艾睿:
This chip CC453232-6R8KL surface mount inductor from Bourns is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -40 °C and a maximum of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 600m A with a maximum resistance of 350m Ohm. This product is 4.8 mm long, 3.4 mm tall and 3.4 mm deep. It has an inductance of 6.8u H. Its test frequency is 7.96M Hz, while its minimum self-resonant frequency is 28M Hz. This device is made with wirewound technology.

安富利:
Ind Chip Wirewound 6.8uH 10% 7.96MHz 10Q-Factor Ferrite 600mA 1812 T/R

Verical:
Inductor Chip Wirewound 6.8uH 10% 7.96MHz 10Q-Factor Ferrite 600mA 350mOhm DCR 1812 T/R

Electro Sonic:
Inductor RF Wirewound 6.8uH 10% 7.96MHz 10Q-Factor Ferrite 0.6A 0.35Ohm DCR 1812 T/R
